Documents: 3RT20172FB411AA0

Datasheet

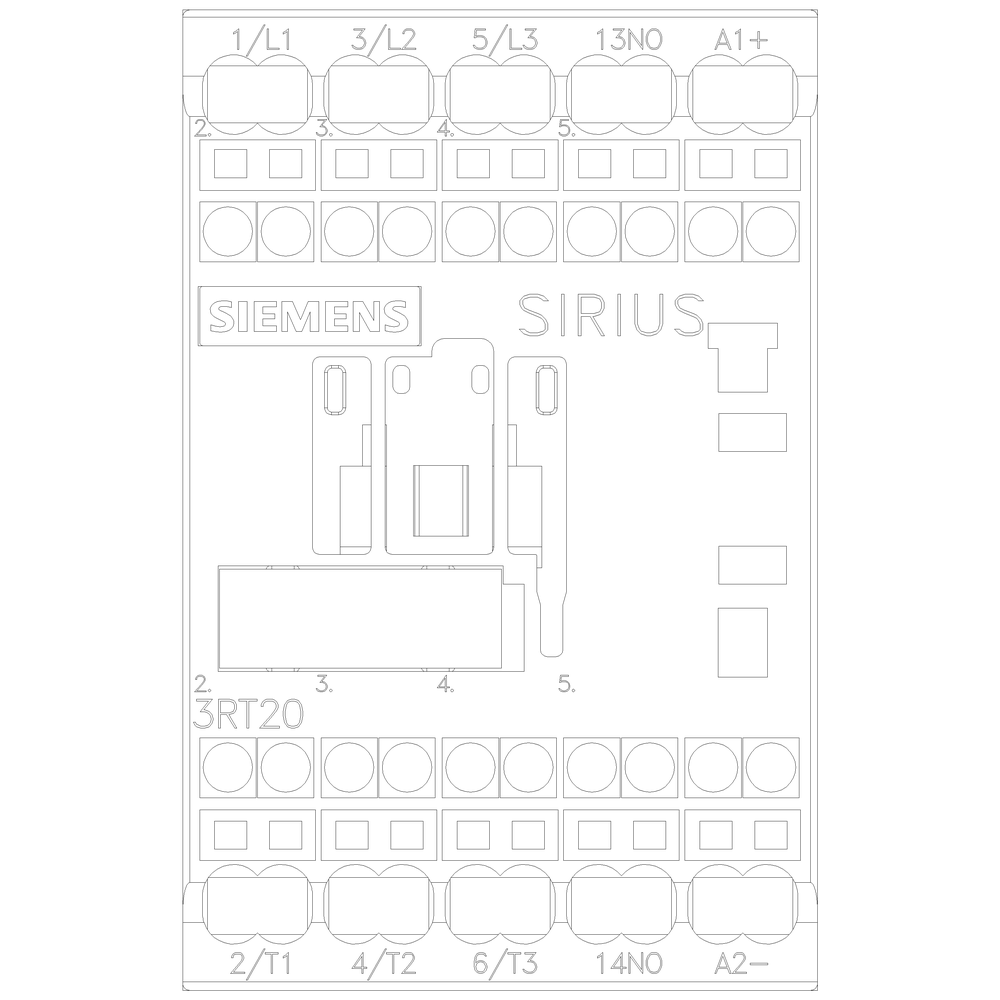

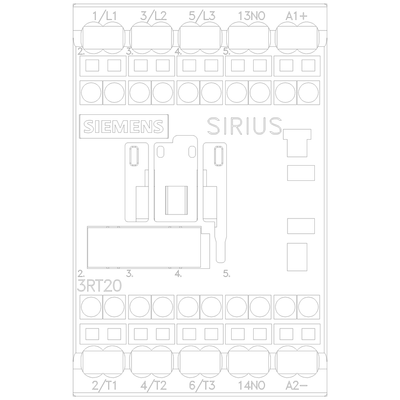

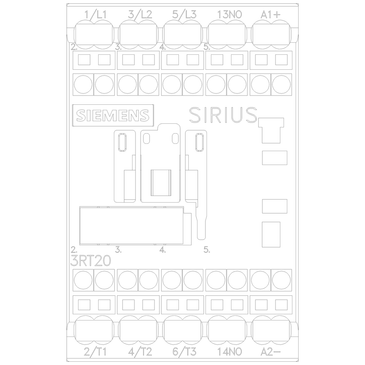

3RT20172FB411AA0 | CONTACTOR | AC3:5 | 5KW 1NO DC24V M. DIODE | Siemens Electrical

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole, 24 V DC, with integrated diode, auxiliary contacts: 1 NO, spring-loaded terminal, size: S00, upright mounting position

Brand: Siemens ElectricalSKU: 3RT20172FB411AA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20172FB411AA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20172FB411AA0

Specifications

Item Number	3RT20172FB411AA0
Brand	Siemens Electrical
Height	3.050 IN
Length	2.890 IN
Modular version	TRUE
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	0.690 LB
Width	1.970 IN
