3RT20172BE42 | CONTACTOR S00 12A 60VDC 1NC SPRG | Siemens Electrical

CONTACTOR, AC-3, 5.5KW/400V, 1NC, DC 60V, 3-POLE, SZ S00 SPRING-LOADED TERMINAL

Brand: Siemens ElectricalSKU: 3RT20172BE42
Siemens Electrical | 3RT20172BE42

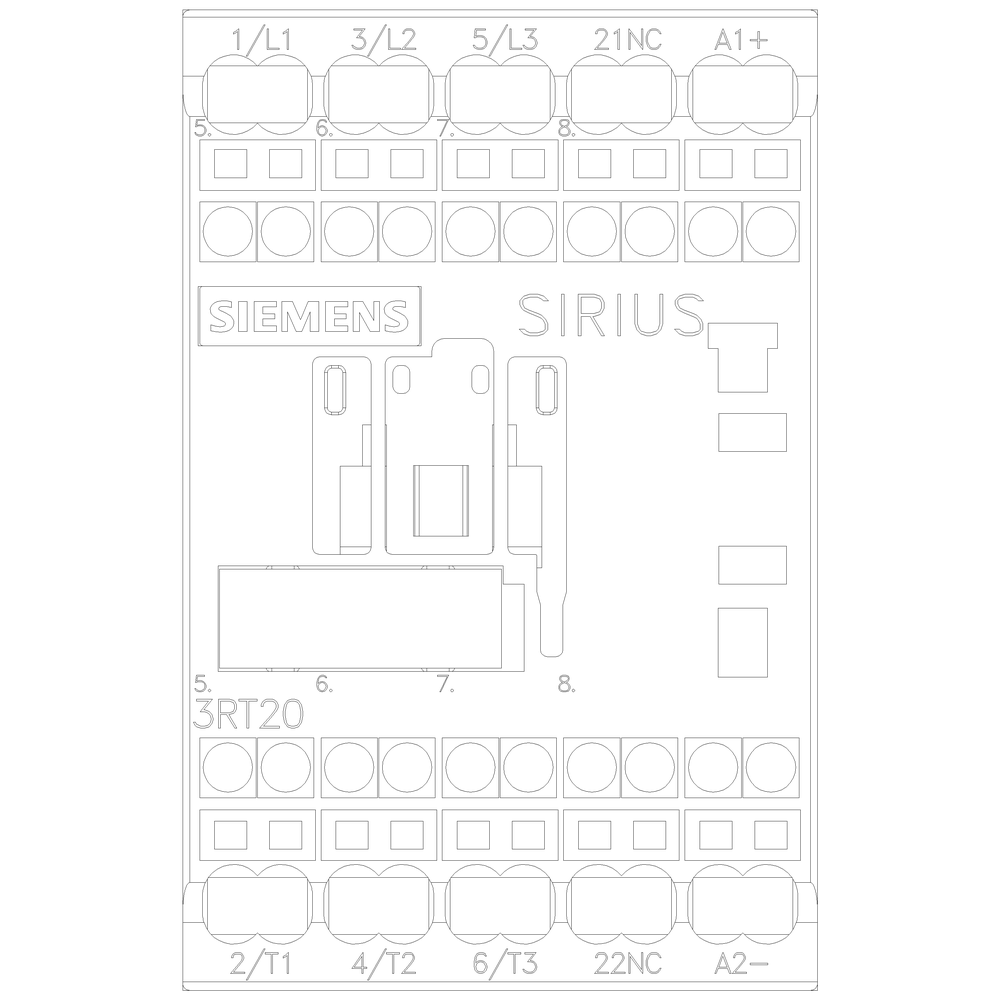

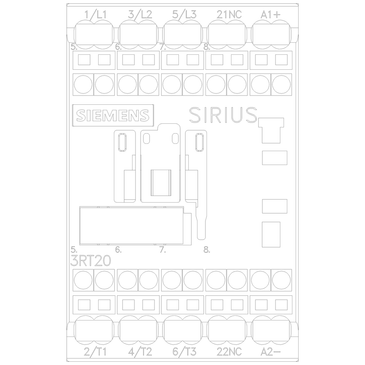

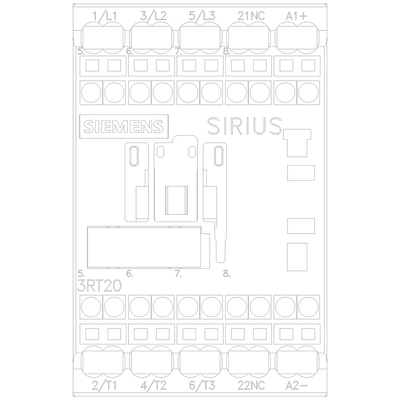

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20172BE42

Overview Details for 3RT20172BE42

Specifications

Item Number 3RT20172BE42
Brand Siemens Electrical
Height 3.080 IN
Length 2.920 IN
Modular version TRUE
Number of auxiliary contacts as normally closed contact 1
Number of main contacts as normally open contact 3
Rated control supply voltage Us at DC 60 V
Rated operation current Ie at AC-1; 400 V 22 A
Rated operation current Ie at AC-3; 400 V 0
Rated operation current Ie at AC-4; 400 V 8.5 A
Rated operation power at AC-3; 400 V 5.5 kW
Rated operation power NEMA 5.516240624 kW
Type of electrical connection of main circuit Spring clamp connection
Voltage type for actuating DC
Weight 0.660 LB
Width 1.970 IN
