3RT20172BB443MA0 | CONTACTOR S00 12A 24VDC 2NO/2NC SPRG | Siemens Electrical

Contactor, AC-3, 5.5KW/400V, 2NO+2NC, DC 24V, 3-pole, sz s00 spring-loaded terminal permanent aux. switch for suva applications

Brand: Siemens ElectricalSKU: 3RT20172BB443MA0

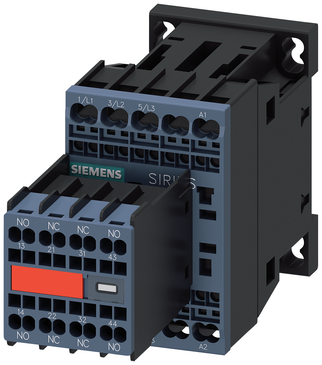

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20172BB443MA0

Item Number	3RT20172BB443MA0
Brand	Siemens Electrical
Height	1.950 IN
Length	2.700 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	0.660 LB
Width	4.750 IN
