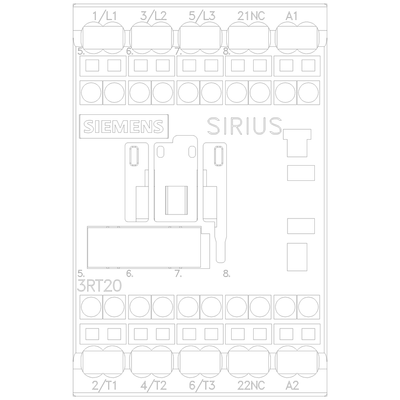

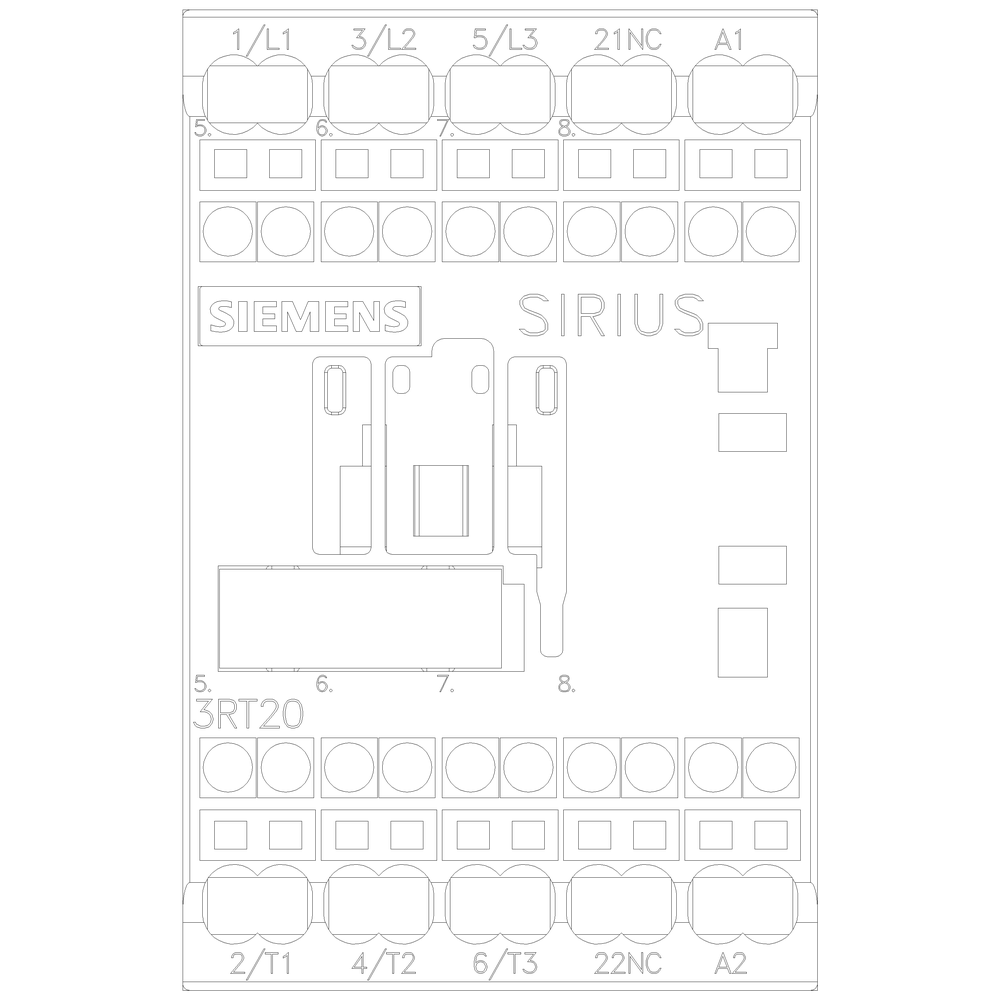

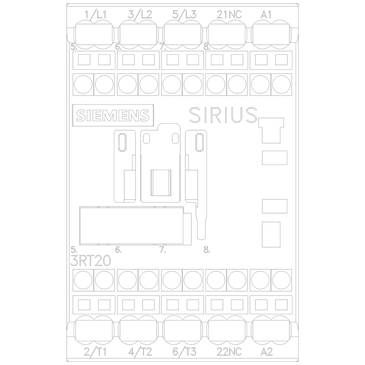

3RT20172AV02 | CONTACTOR S00 12A 400VAC 1NC SPRG | Siemens Electrical

CONT, AC-3,5.5KW/400V, 1NC,AC 400

Brand: Siemens ElectricalSKU: 3RT20172AV02

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20172AV02

Item Number	3RT20172AV02
Brand	Siemens Electrical
Height	3.080 IN
Length	2.920 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	400 V
Rated control supply voltage Us at AC 60HZ	400 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.660 LB
Width	1.970 IN
