Documents: 3RT20171XB420LA2

Datasheet

3RT20171XB420LA2 | CONTACTOR F.RAIL.AC3:5.5KW 24-34VDC. VAR | Siemens Electrical

Traction contactor. AC-3 12 A. 5.5 kW / 400 V 1 NC. 24-34 V DC. 0.7-1.25*US with integrated varistor Size S00. screw terminal suitable for PLC outputs

Brand: Siemens ElectricalSKU: 3RT20171XB420LA2

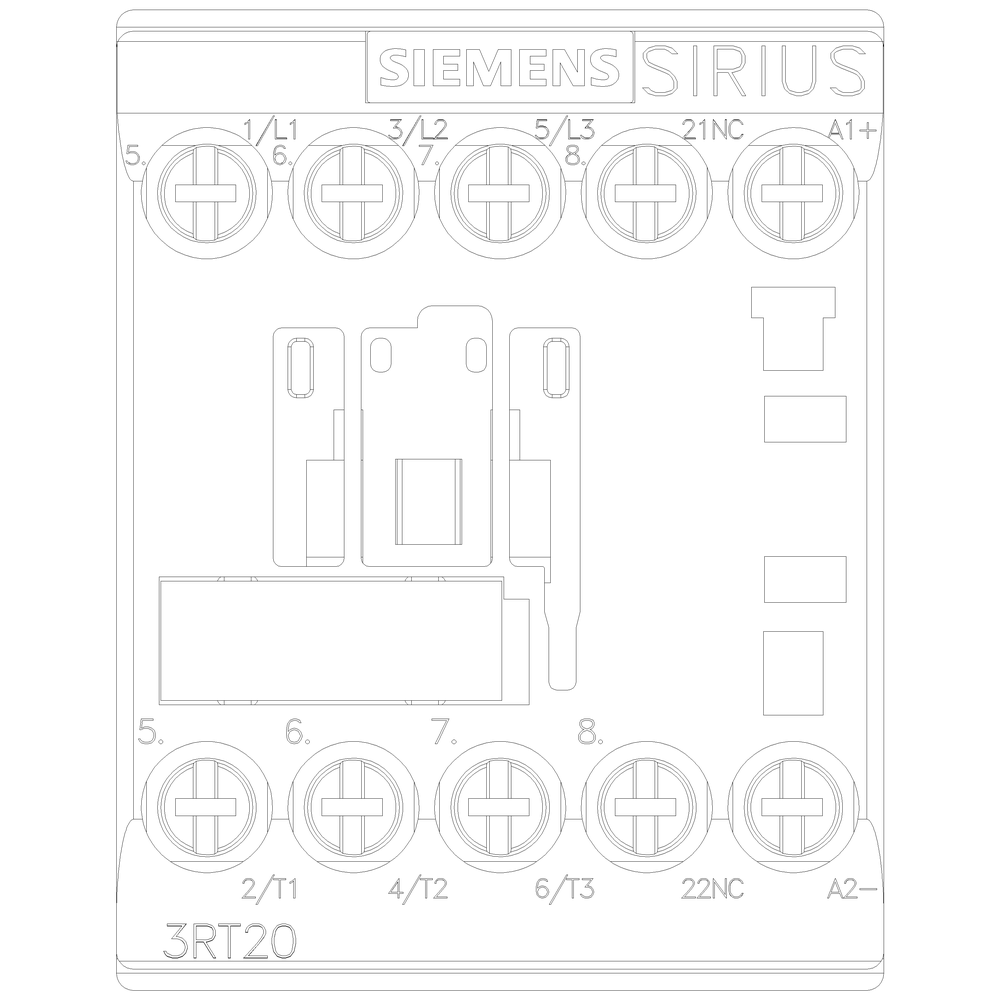

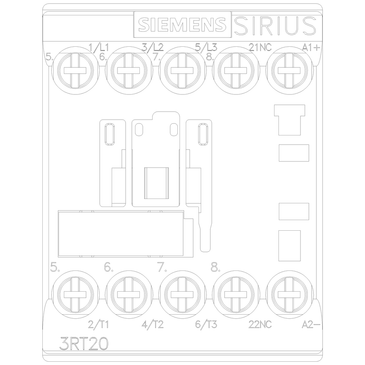

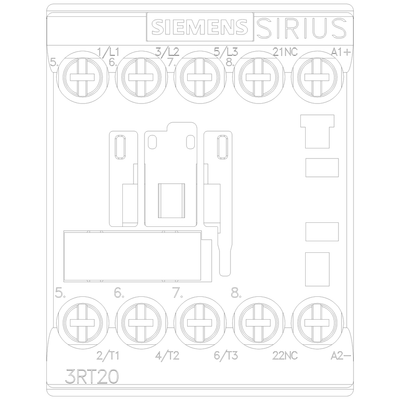

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20171XB420LA2

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20171XB420LA2

Specifications

Item Number	3RT20171XB420LA2
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power at AC-4; 400 V	4 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	0.66400 LB
