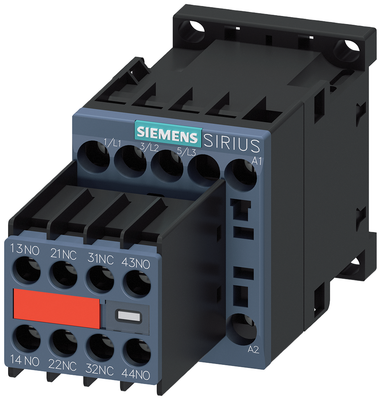

3RT20171AK643MA0 | CONTACTOR S00 12A 120VAC 2NO/2NC SCRW | Siemens Electrical

Contactor, AC-3, 5.5KW/400V, 2NO+2NC AC110v 50HZ/120v 60HZ 3-pole, sz s00 screw terminal permanent aux. switch for suva applications

Brand: Siemens ElectricalSKU: 3RT20171AK643MA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20171AK643MA0

Item Number	3RT20171AK643MA0
Brand	Siemens Electrical
Height	1.950 IN
Length	5 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	5.516240624 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.620 LB
Width	2.400 IN
