Documents: 3RT20171AG62
3RT20171AG62 | CONTACTOR S00 12A 100VAC 1NC SCRW | Siemens Electrical
CONTACTOR, AC-3, 5.5KW/400V, 1NC, AC 100V 50HZ, 100...110V 60HZ 3-POLE, SZ S00 SCREW TERMINAL

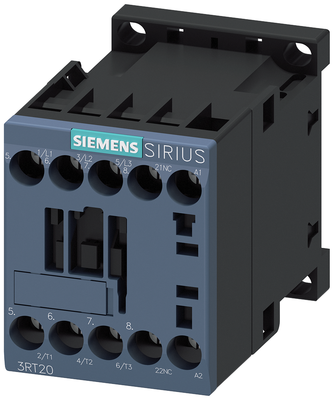

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20171AG62
Overview Details for 3RT20171AG62
Specifications
Item Number | 3RT20171AG62 |
Brand | Siemens Electrical |
Height | 3.080 IN |
Length | 2.450 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 100 V |
Rated control supply voltage Us at AC 60HZ | 110 V |
Rated operation current Ie at AC-1; 400 V | 22 A |
Rated operation current Ie at AC-3; 400 V | 0 |
Rated operation current Ie at AC-4; 400 V | 8.5 A |
Rated operation power at AC-3; 400 V | 5.5 kW |
Rated operation power NEMA | 5.516240624 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 0.61600 LB |
Width | 1.970 IN |
