3RT20164AP62 | CONTACTOR S00 9A 240VAC 1NC R Lug | Siemens Electrical

CONTACTOR, AC-3, 4KW/400V, 1NC, AC 220V 50HZ / 240V 60HZ 3POLE, SZ. S00 SCREW TERMINAL

Brand: Siemens ElectricalSKU: 3RT20164AP62

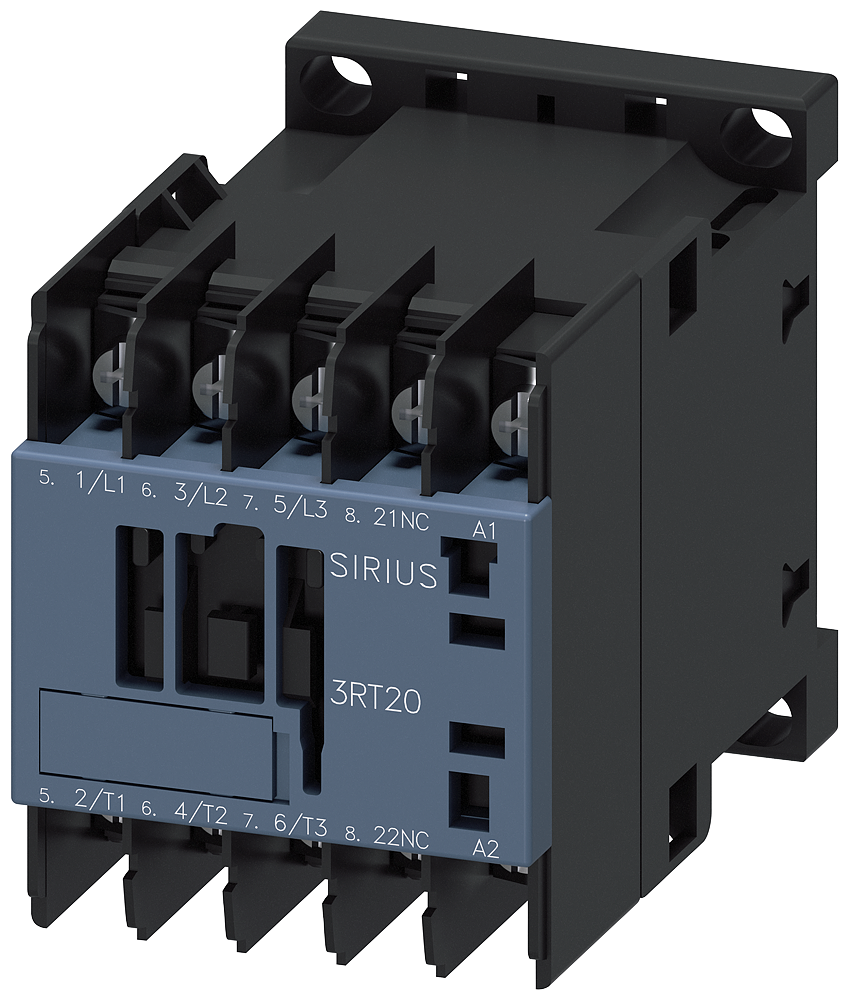

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20164AP62

Item Number	3RT20164AP62
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	240 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Other
Voltage type for actuating	AC
Weight	0.61600 LB
