Documents: 3RT20162CP043MA0

Datasheet

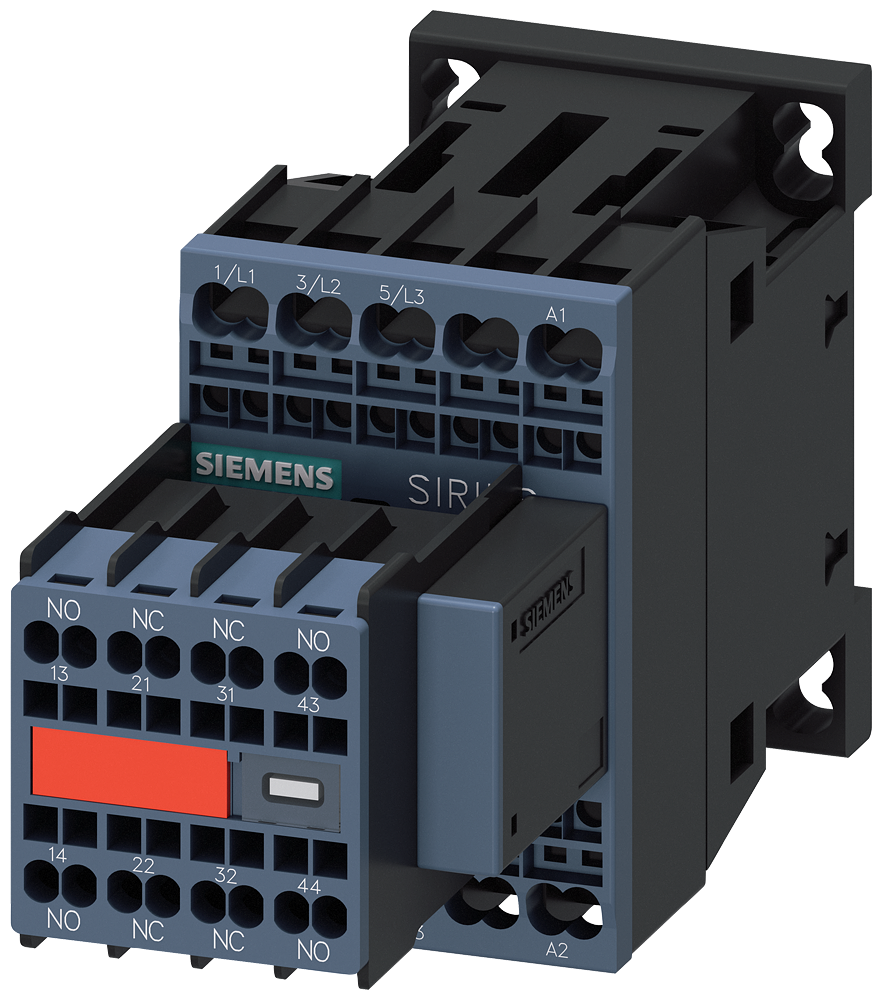

3RT20162CP043MA0 | CONTACTOR S00 9A 230VAC 2NO/2NC SPRG | Siemens Electrical

CONTACTOR, AC-3, 4KW/400V, 2NO+2NC, AC 230V, 50/60 HZ, W. PLUGGED-ON VARISTOR 3-POLE, SZ S00 SPRING-LOADED TERMINAL PERMANENT AUX. SWITCH FOR SUVA APPLICATIONS

Brand: Siemens ElectricalSKU: 3RT20162CP043MA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20162CP043MA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20162CP043MA0

Specifications

Item Number	3RT20162CP043MA0
Brand	Siemens Electrical
Height	4.890 IN
Length	2.920 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	230 V
Rated control supply voltage Us at AC 60HZ	230 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.660 LB
Width	1.970 IN
