3RT20162BG41 | CONTACTOR S00 9A 125VDC 1NO SPRG | Siemens Electrical

CONTACTOR, AC-3, 4KW/400V, 1NO, DC 125V, 3-POLE, SZ S00 SPRING-LOADED TERMINAL

Brand: Siemens ElectricalSKU: 3RT20162BG41

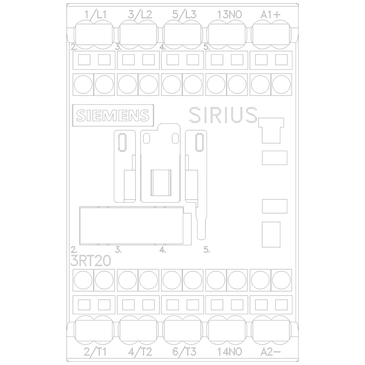

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20162BG41

Item Number	3RT20162BG41
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	125 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	0.660 LB
