Documents: 3RT20161WB41

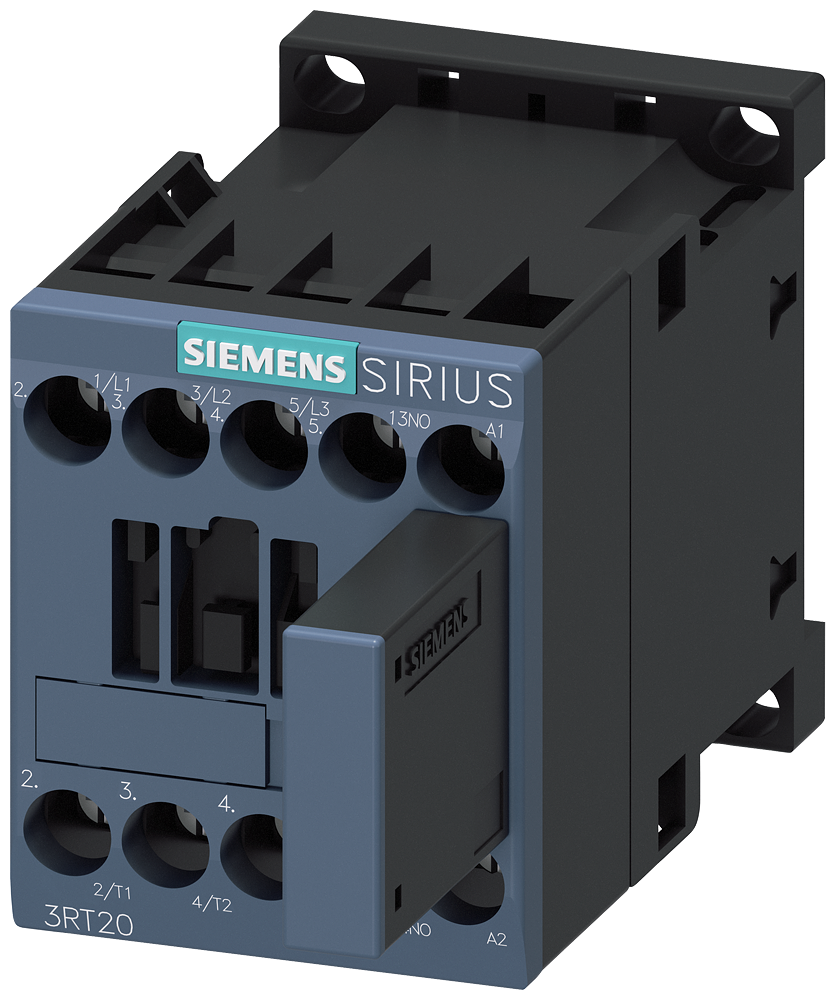

3RT20161WB41 | COUPLNG RELAY S00 9A 24VDC 1NO SCRW | Siemens Electrical
COUPLING RELAY, AC-3, 4KW/400V, 1NO, DC 24V, 0.85...1.85*US, W. PLUGGED-ON VARISTOR 3-POLE SZ S00, SCREW TERMINAL
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20161WB41
Overview Details for 3RT20161WB41
Specifications
Item Number | 3RT20161WB41 |
Brand | Siemens Electrical |
Height | 4.730 IN |
Length | 2.450 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at DC | 24 V |
Rated operation current Ie at AC-1; 400 V | 22 A |
Rated operation current Ie at AC-3; 400 V | 0.375 |
Rated operation current Ie at AC-4; 400 V | 8.5 A |
Rated operation power at AC-3; 400 V | 4 kW |
Rated operation power NEMA | 3.677493749 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | DC |
Weight | 0.61600 LB |
Width | 1.970 IN |
