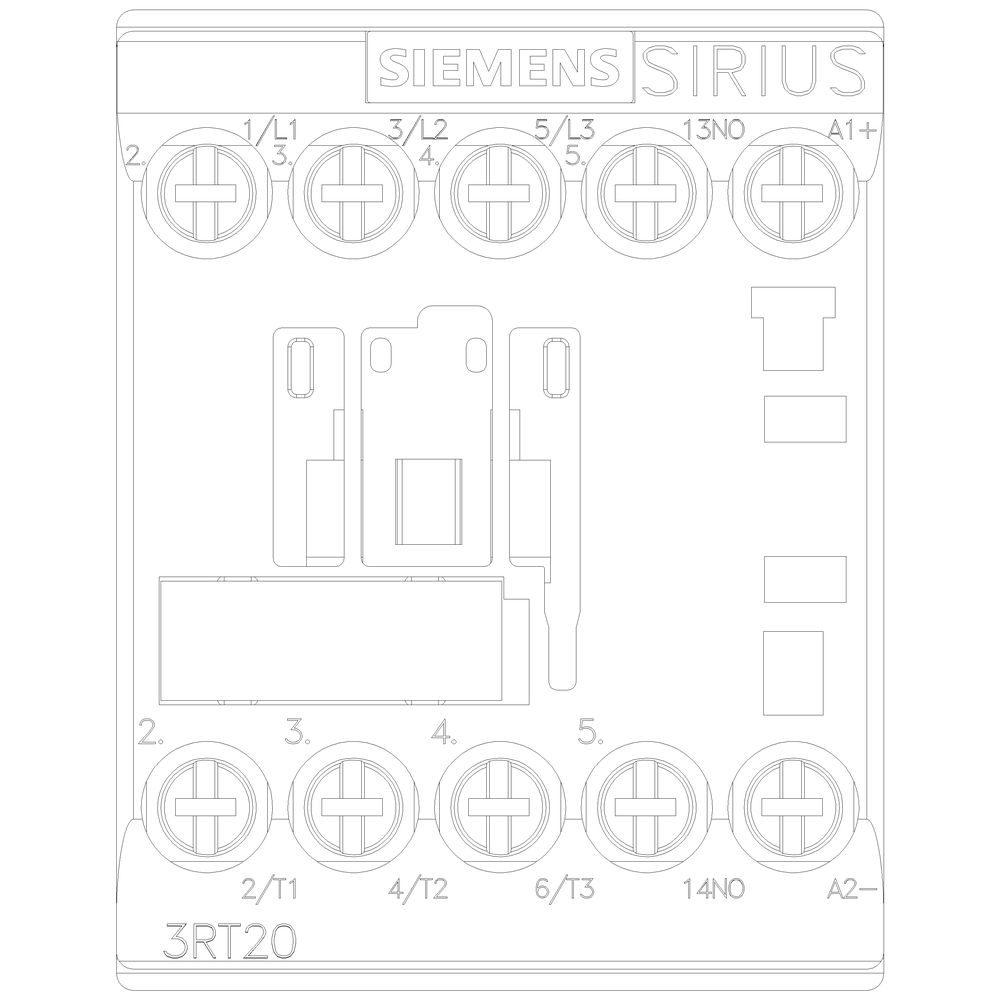

3RT20161UB41 | CONTACTOR.AC3:4KW 1NO DC24V M. VARISTOR | Siemens Electrical

Power contactor. AC-3 9 A. 4 kW / 400 V 1 NO. 24 V DC with varistor integrated. 3-pole. Size S00. screw terminal

Brand: Siemens ElectricalSKU: 3RT20161UB41

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20161UB41

Item Number	3RT20161UB41
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	0.63500 LB
