3RT20161CU07 | CONTACTOR. AC-3. 4KW/400V 3NO+2NC 240 | Siemens Electrical

CONTACTOR, AC-3, 4KW/400V, 3NO+2NC, 240V AC 50/60HZ, 3-POLE, SIZE S00, SCREW TERMINAL VARISTOR PLUGGED ON

Brand: Siemens ElectricalSKU: 3RT20161CU07

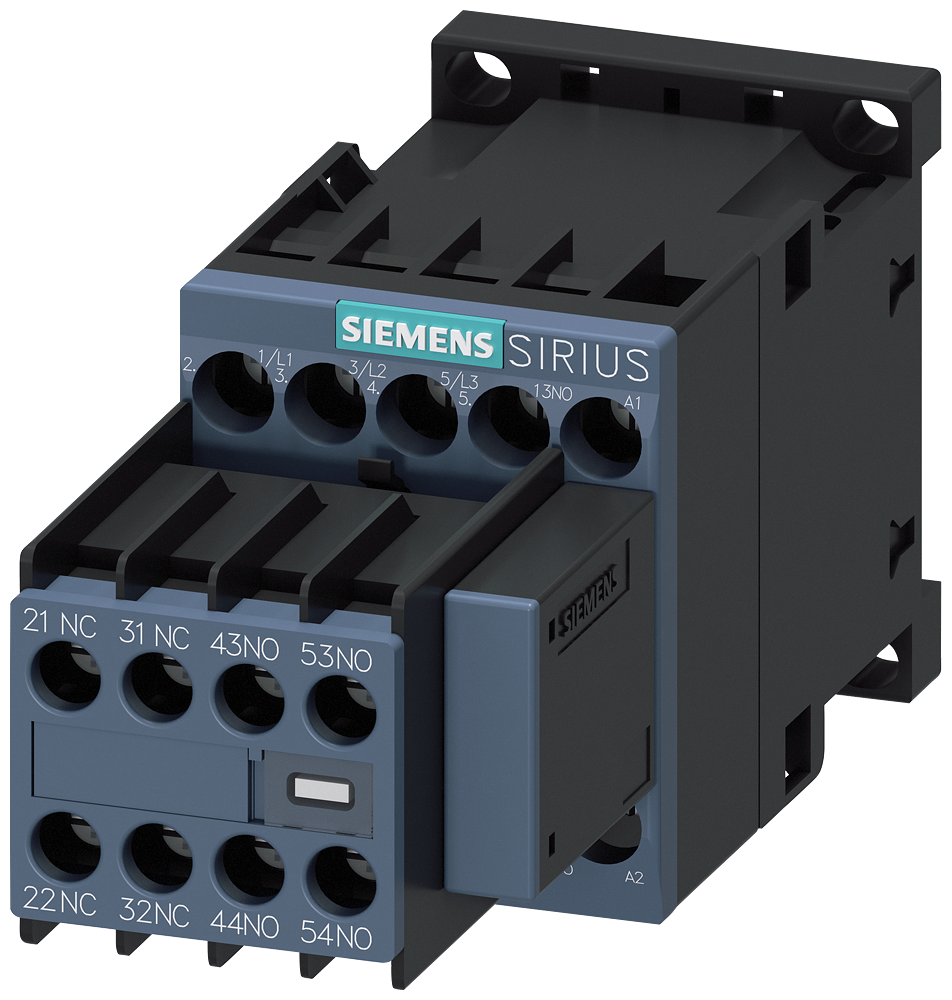

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20161CU07

Item Number	3RT20161CU07
Brand	Siemens Electrical
Height	4.74500 IN
Length	2.42200 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	3
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	240 V
Rated control supply voltage Us at AC 60HZ	240 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.63300 LB
Width	1.96900 IN
