Documents: 3RT20161CP043MA0

Datasheet

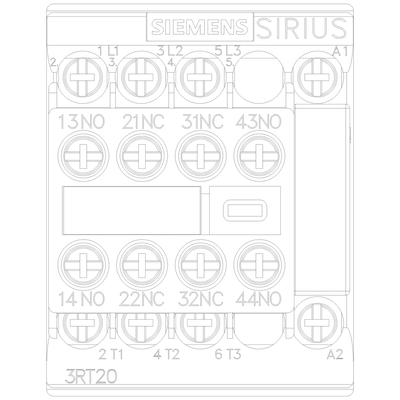

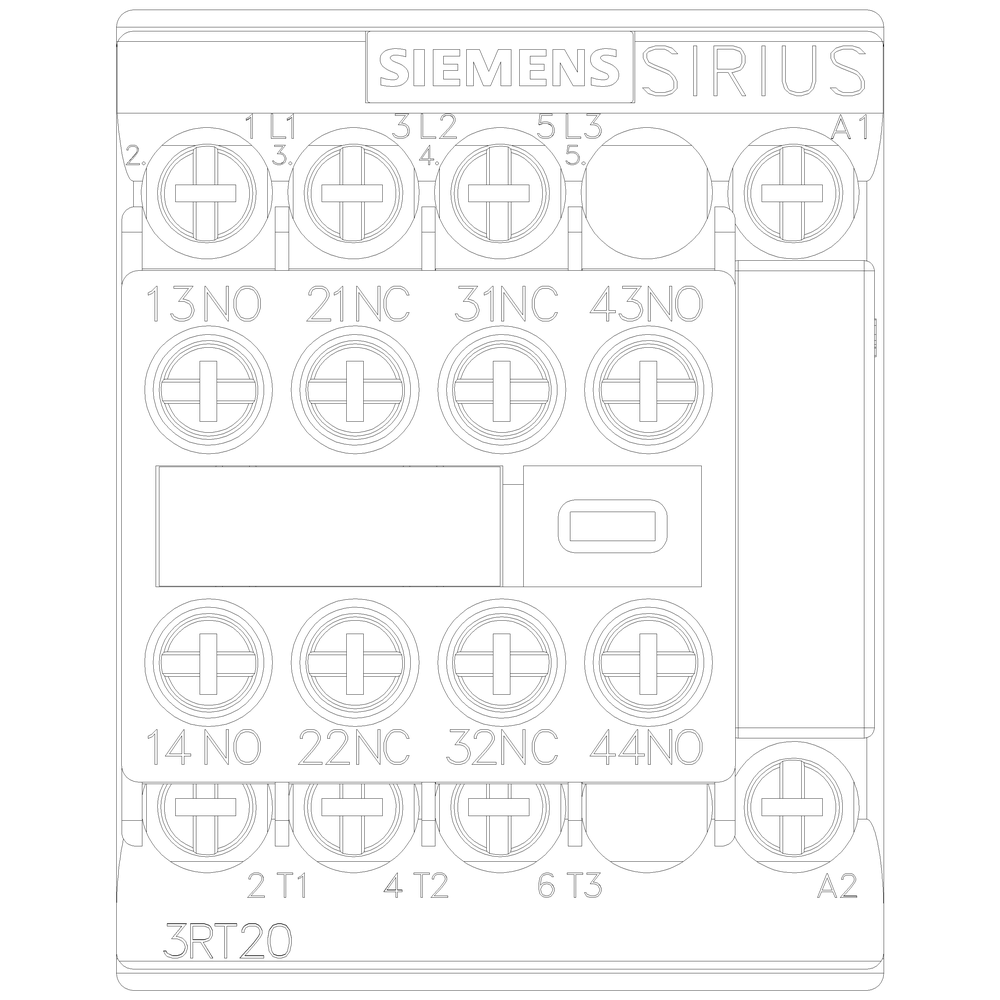

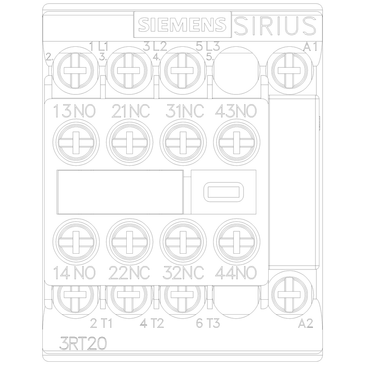

3RT20161CP043MA0 | CONTACTOR S00 9A 230VAC 2NO/2NC SCRW | Siemens Electrical

Contactor, AC-3, 4KW/400V, 2NO+2NC, AC 230V, 50/60 HZ, w. plugged-on varistor 3-pole, sz s00 screw terminal permanent aux. switch for suva applications

Brand: Siemens ElectricalSKU: 3RT20161CP043MA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20161CP043MA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20161CP043MA0

Specifications

Item Number	3RT20161CP043MA0
Brand	Siemens Electrical
Height	1.950 IN
Length	2.200 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	230 V
Rated control supply voltage Us at AC 60HZ	230 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.620 LB
Width	1.700 IN
