3RT20161CK643MA0 | CONTACTOR S00 9A 120VAC 2N0/2NC SCRW | Siemens Electrical

Contactor, AC-3, 4KW/400V, 2NO+2NC, AC 110v 50HZ 120v 60HZ, w. plugged-on varistor 3pole, sz. s00 screw terminal permanently mounted aux. switch

Brand: Siemens ElectricalSKU: 3RT20161CK643MA0

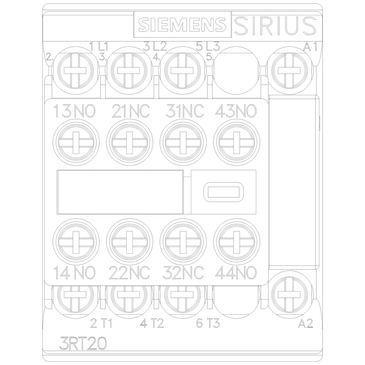

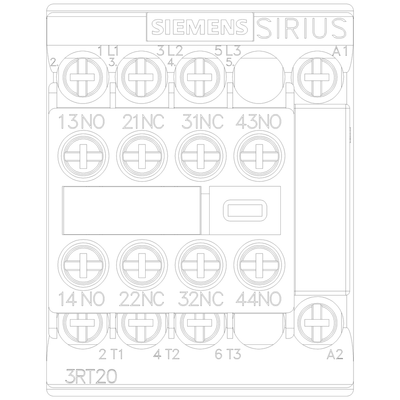

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20161CK643MA0

Item Number	3RT20161CK643MA0
Brand	Siemens Electrical
Height	4.730 IN
Length	2.450 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.61600 LB
Width	1.970 IN
