Documents: 3RT20161CF07

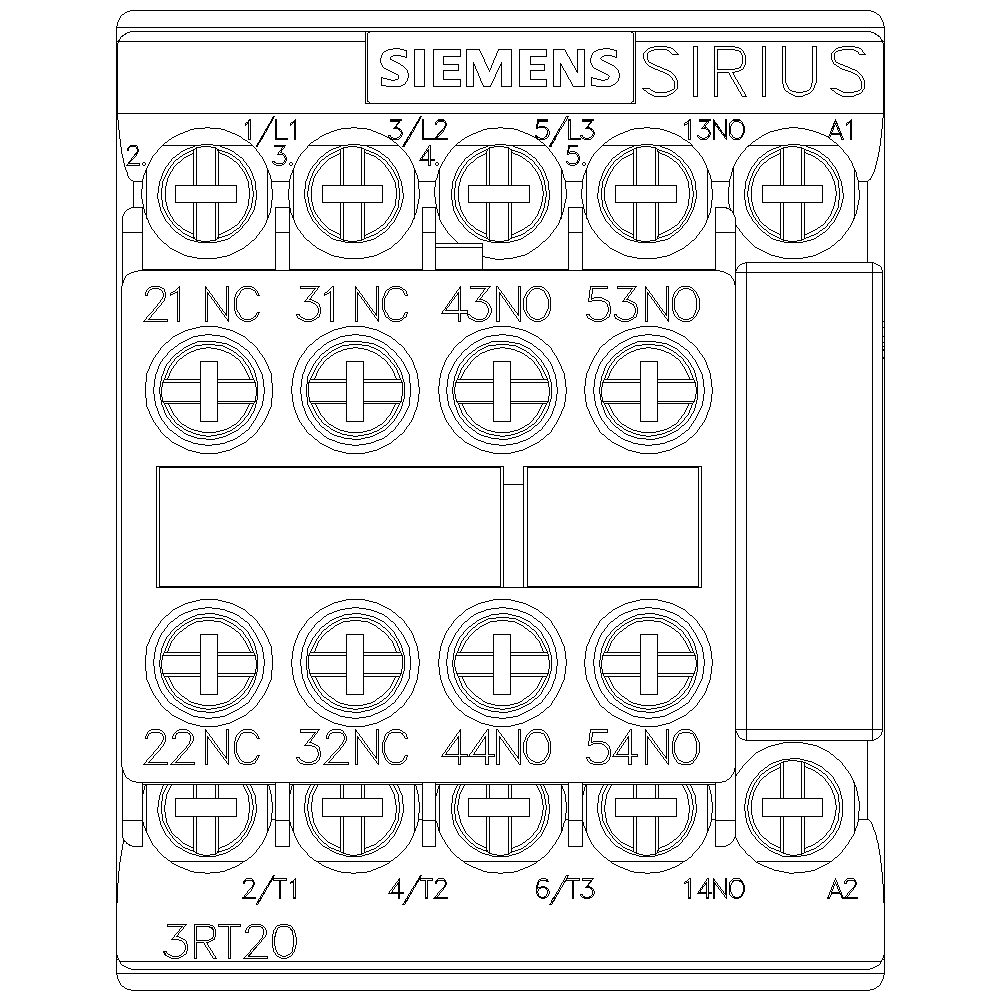

3RT20161CF07 | CONTACTOR AC-3 4KW/400V 3NO+2NC 110V | Siemens Electrical
CONTACTOR, AC-3, 4KW/400V, 3NO+2NC, 110V AC 50/60HZ, 3-POLE, SIZE S00, SCREW TERMINAL VARISTOR PLUGGED ON
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20161CF07
Overview Details for 3RT20161CF07
Specifications
Item Number | 3RT20161CF07 |
Brand | Siemens Electrical |
Height | 4.74500 IN |
Length | 2.42200 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 2 |
Number of auxiliary contacts as normally open contact | 3 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 110 V |
Rated control supply voltage Us at AC 60HZ | 110 V |
Rated operation current Ie at AC-1; 400 V | 22 A |
Rated operation current Ie at AC-3; 400 V | 0.375 |
Rated operation current Ie at AC-4; 400 V | 8.5 A |
Rated operation power at AC-3; 400 V | 4 kW |
Rated operation power NEMA | 3.677493749 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 0.62600 LB |
Width | 1.96900 IN |
