3RT20161BB420CC0 | CONTACTOR S00 9A 24VDC 1NC SCRW | Siemens Electrical

CONTACTOR, AC-3, 4KW/400V, 1NC, DC 24V, COM. CAPABILITY 3-POLE, SZ S00 SCREW TERMINAL

Brand: Siemens ElectricalSKU: 3RT20161BB420CC0

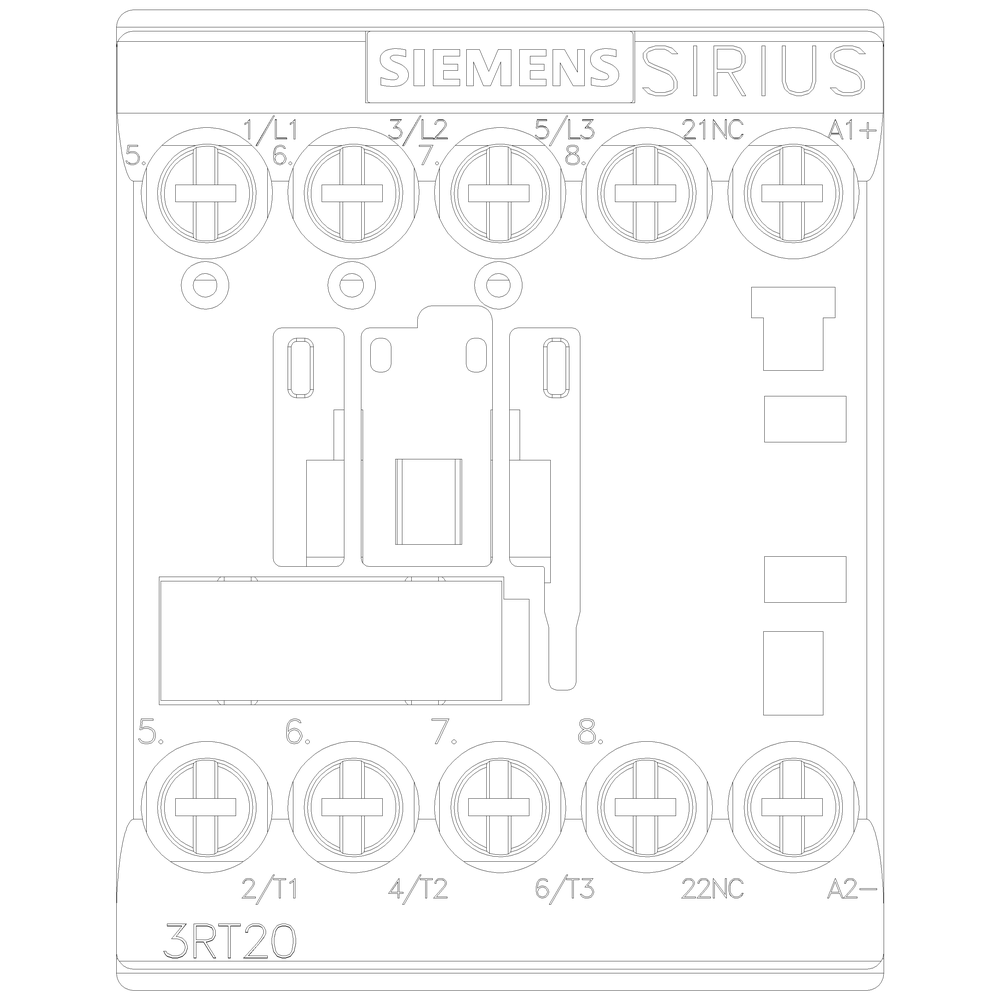

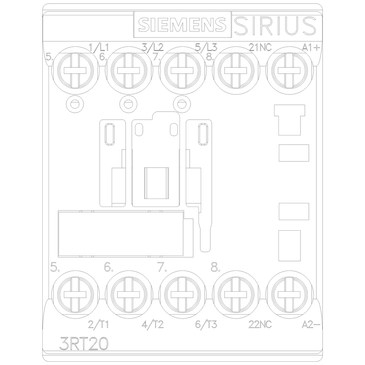

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20161BB420CC0

Item Number	3RT20161BB420CC0
Brand	Siemens Electrical
Height	3.080 IN
Length	2.450 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	0.61600 LB
Width	1.970 IN
