3RT20152MB410KT0 | COUPLNG RELAY S00 7A 24VDC 1NO SPRG | Siemens Electrical

COUPLING RELAY, AC-3, 3KW/400V, 1NO, DC 24V, 0.85...1.85*US, 3-POLE, SZ S00 SPRING-LOADED TERMINAL

Brand: Siemens ElectricalSKU: 3RT20152MB410KT0

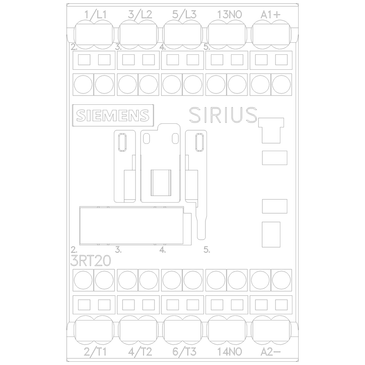

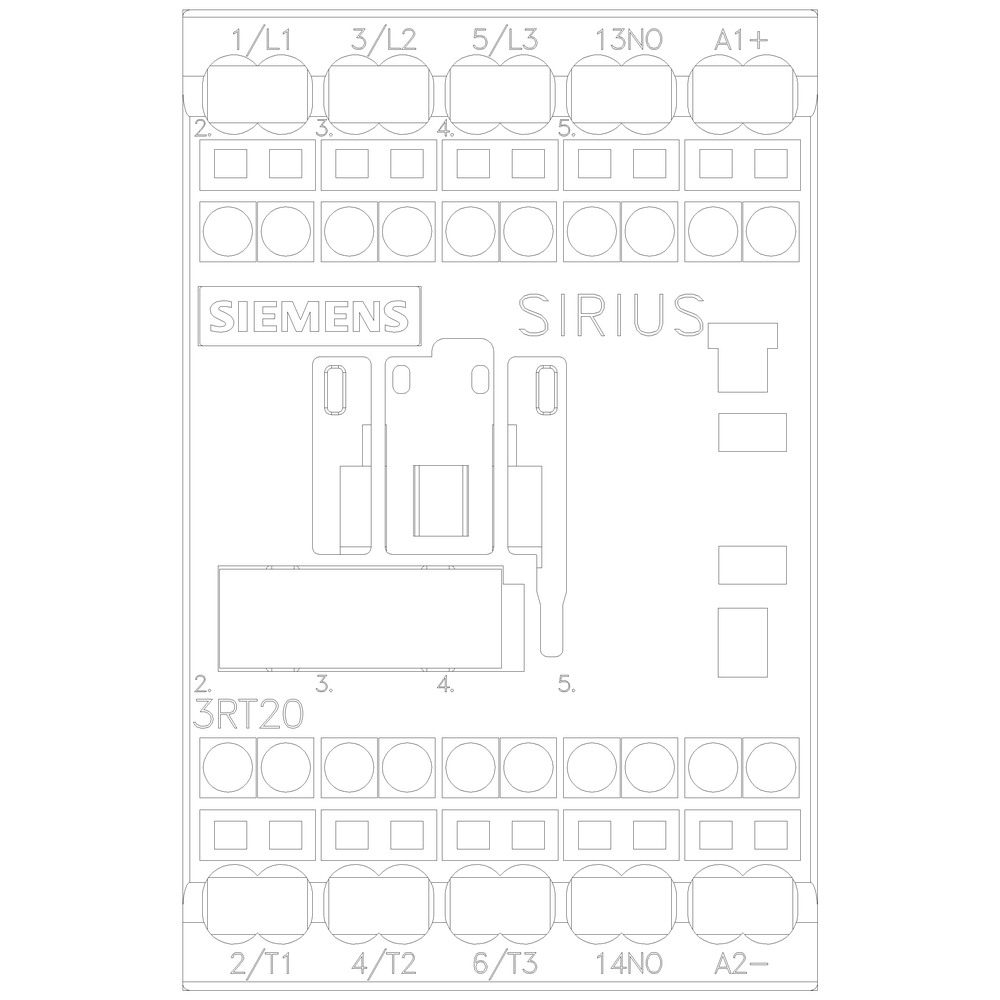

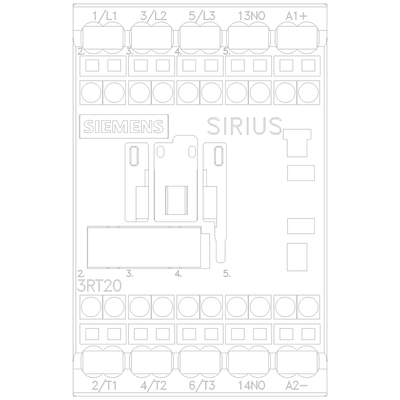

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20152MB410KT0

Item Number	3RT20152MB410KT0
Brand	Siemens Electrical
Height	3.080 IN
Length	2.920 IN
Modular version	TRUE
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.291666666666667
Rated operation current Ie at AC-4; 400 V	6.5 A
Rated operation power at AC-3; 400 V	3 kW
Rated operation power NEMA	2.20649625 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	0.660 LB
Width	1.970 IN
