3RT20152EK61 | CONTACTOR S00 3A 120V 1NO SPRG | Siemens Electrical

CONTACTOR, AC-3, 3KW/400V, 1 NO AC 110V 50 HZ, AC 120V 60 HZ, 3-POLE, SZ S00 SPRING-LOADED TERMINAL .

Brand: Siemens ElectricalSKU: 3RT20152EK61

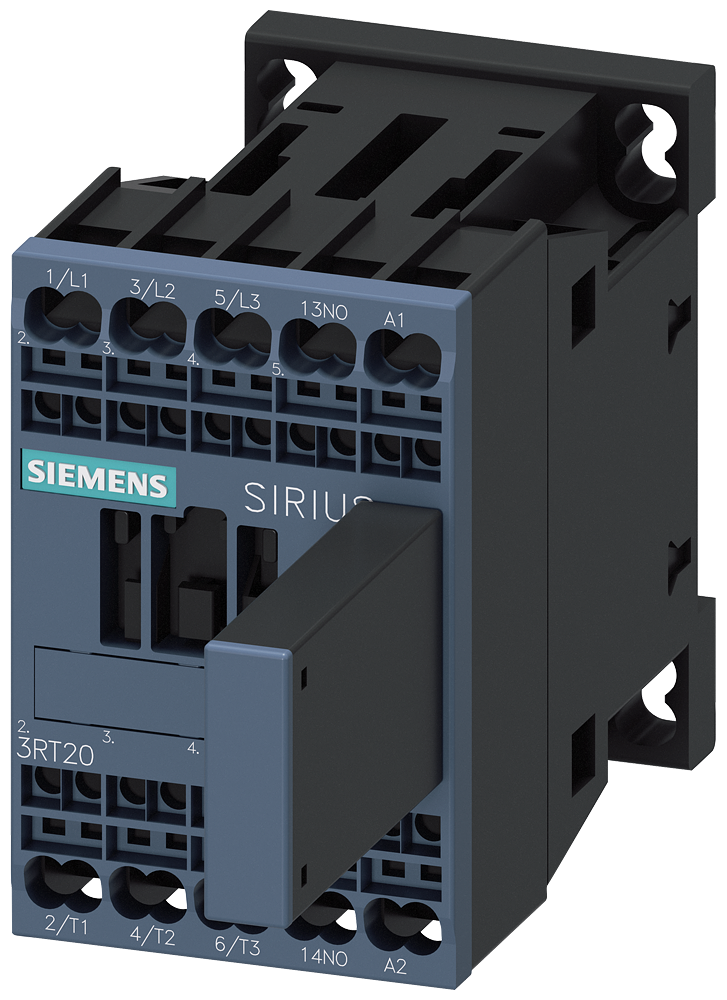

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20152EK61

Item Number	3RT20152EK61
Brand	Siemens Electrical
Height	5.15800 IN
Length	2.91400 IN
Modular version	TRUE
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.291666666666667
Rated operation current Ie at AC-4; 400 V	6.5 A
Rated operation power at AC-3; 400 V	3 kW
Rated operation power NEMA	2.20649625 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.59700 LB
Width	2.04800 IN
