Documents: 3RT20152BF483MA4

Datasheet

3RT20152BF483MA4 | CONTACTOR S00 7A 110VDC 1NC SPRG | Siemens Electrical

CONTACTOR, AC-3, 3KW/400V, 1NC, DC 110V 3POLE, SZ. S00 SPRING-LOADED TERMINAL PERMANENT AUXILIARY SWITCH CENTER AUX. NC CONTACT CONDUCTING PATH UNEQUIPPED

Brand: Siemens ElectricalSKU: 3RT20152BF483MA4

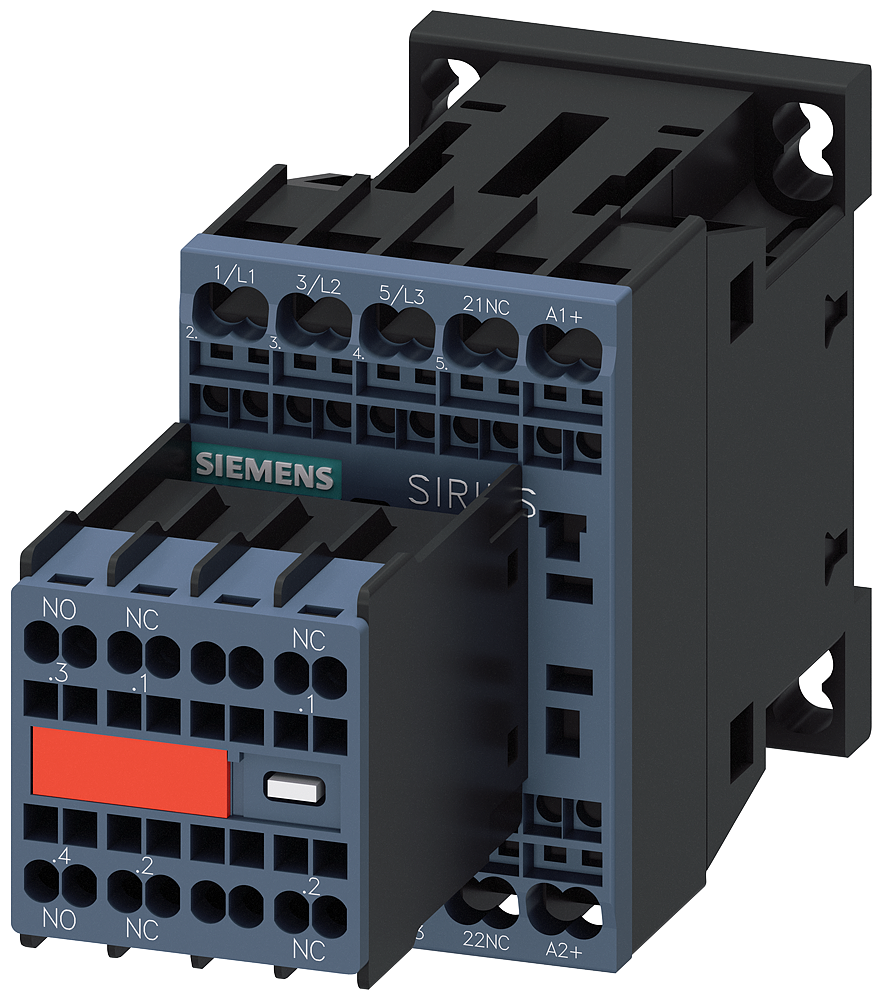

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20152BF483MA4

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20152BF483MA4

Specifications

Item Number	3RT20152BF483MA4
Brand	Siemens Electrical
Height	4.890 IN
Length	2.920 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	3
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	110 V
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.291666666666667
Rated operation current Ie at AC-4; 400 V	6.5 A
Rated operation power at AC-3; 400 V	3 kW
Rated operation power NEMA	2.20649625 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	0.660 LB
Width	1.970 IN
