3RT20152BB421AA0 | CONTACTOR.AC3:3KW 1NC DC24V | Siemens Electrical

Power contactor. AC-3 7 A. 3 kW / 400 V 1 NC. 24 V DC 3-pole. Size S00 Spring-type terminal upright mounting position

Brand: Siemens ElectricalSKU: 3RT20152BB421AA0

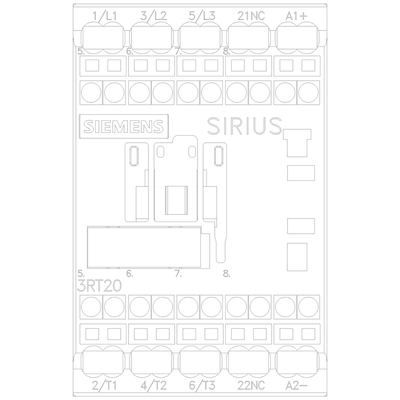

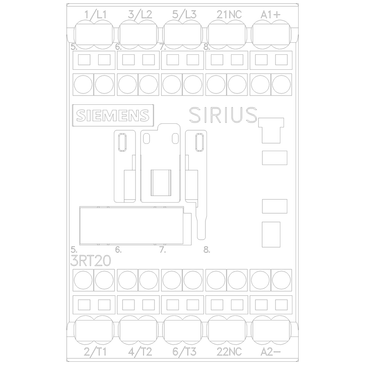

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20152BB421AA0

Item Number	3RT20152BB421AA0
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.291666666666667
Rated operation current Ie at AC-4; 400 V	6.5 A
Rated operation power at AC-3; 400 V	3 kW
Rated operation power NEMA	2.20649625 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	0.68400 LB
