3RT20152AN21 | CONTACTOR S00 7A 220VAC 1NO SPRG | Siemens Electrical

CONT, AC-3,3KW/400V, 1NO, AC 220V,

Brand: Siemens ElectricalSKU: 3RT20152AN21

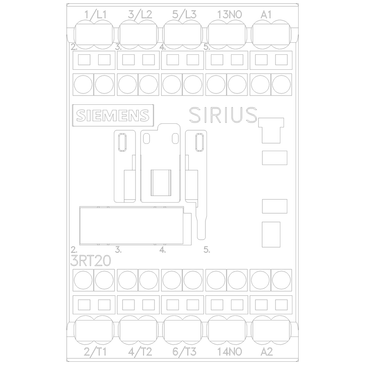

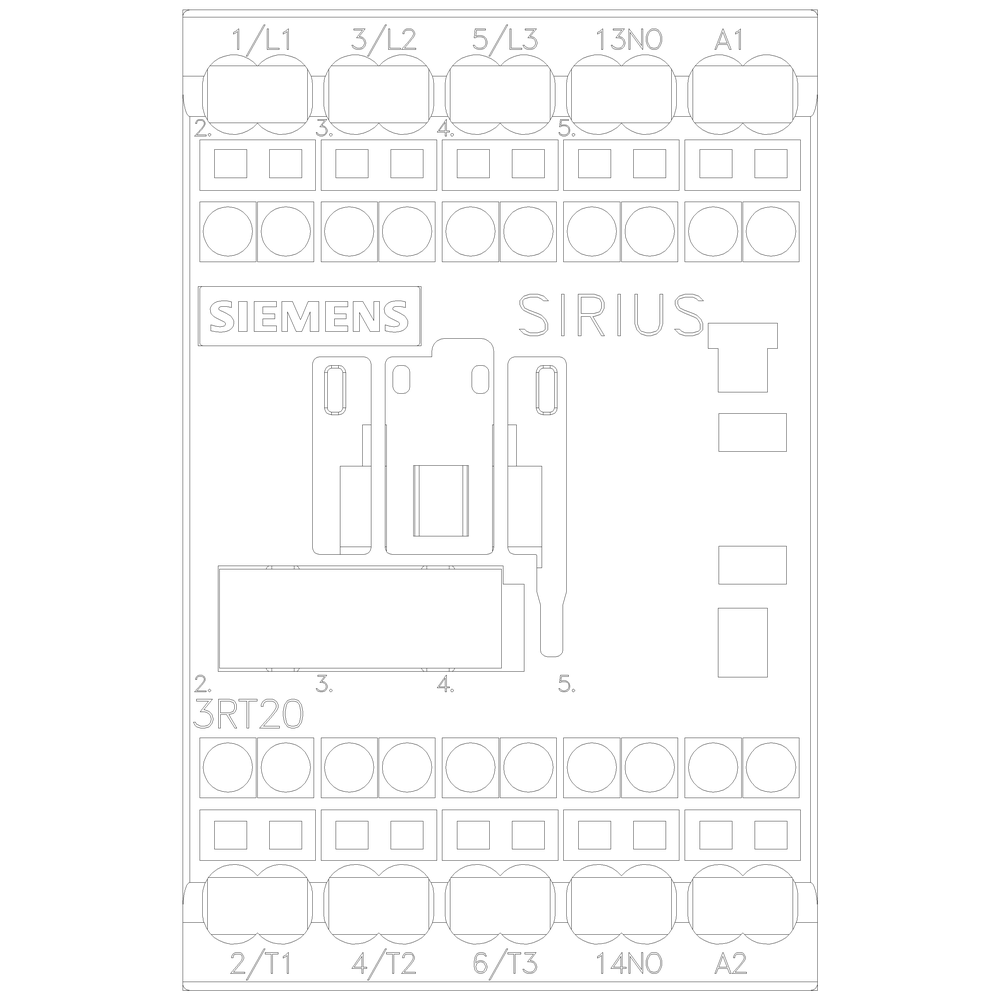

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20152AN21

Item Number	3RT20152AN21
Brand	Siemens Electrical
Height	3.080 IN
Length	2.920 IN
Modular version	TRUE
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	220 V
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.291666666666667
Rated operation current Ie at AC-4; 400 V	6.5 A
Rated operation power at AC-3; 400 V	3 kW
Rated operation power NEMA	2.20649625 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.660 LB
Width	1.970 IN
