3RT20152AB01 | CONTACTOR S00 7A 24VAC 1NO SPRG | Siemens Electrical

Contactor, AC-3, 3KW/400V, 1NO, AC 24V, 50/60 HZ, 3-pole, sz s00 spring-loaded terminal

Brand: Siemens ElectricalSKU: 3RT20152AB01

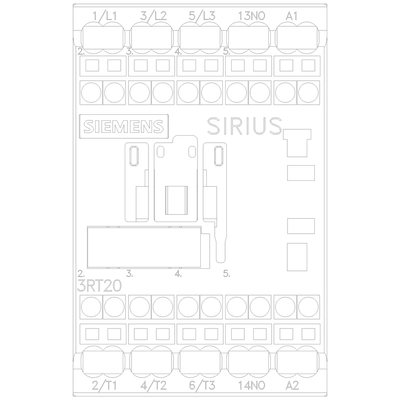

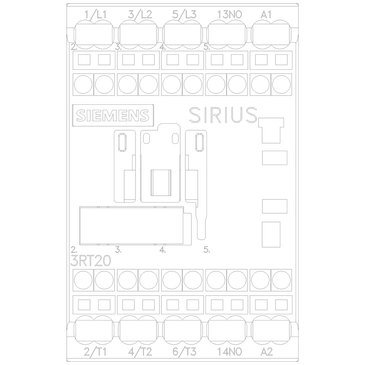

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20152AB01

Item Number	3RT20152AB01
Brand	Siemens Electrical
Height	1.950 IN
Length	3 IN
Modular version	TRUE
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	24 V
Rated control supply voltage Us at AC 60HZ	24 V
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.291666666666667
Rated operation current Ie at AC-4; 400 V	6.5 A
Rated operation power at AC-3; 400 V	3 kW
Rated operation power at AC-4; 400 V	3 kW
Rated operation power NEMA	2.20649625 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.550 LB
Width	2.850 IN
