Documents: 3RT20151JB41

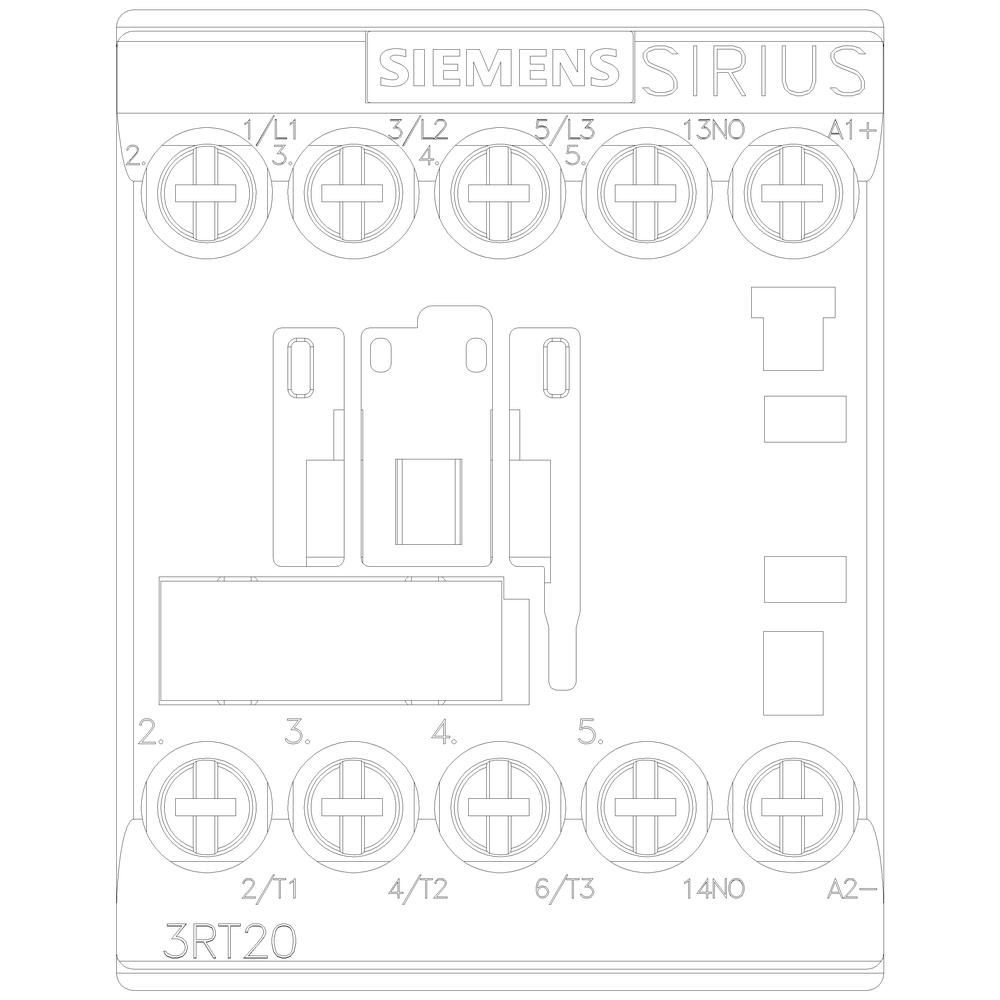

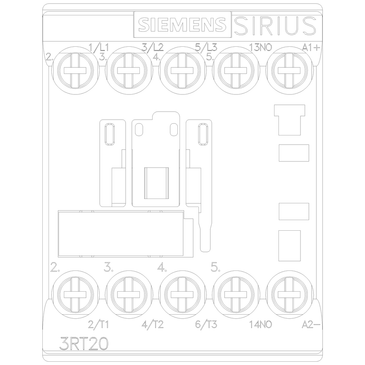

3RT20151JB41 | COUPLNG RELAY S00 7A 24VDC 1NO SCRW | Siemens Electrical
Coupling relay, AC-3, 3KW/400V, 1NO, DC 24V, 0.7...1.25*us, w. integrated diode 3-pole sz s00, screw terminal
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20151JB41
Overview Details for 3RT20151JB41
Specifications
Item Number | 3RT20151JB41 |
Brand | Siemens Electrical |
Height | 3.080 IN |
Length | 2.450 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at DC | 24 V |
Rated operation current Ie at AC-1; 400 V | 18 A |
Rated operation current Ie at AC-3; 400 V | 0.291666666666667 |
Rated operation current Ie at AC-4; 400 V | 6.5 A |
Rated operation power at AC-3; 400 V | 3 kW |
Rated operation power at AC-4; 400 V | 3 kW |
Rated operation power NEMA | 2.20649625 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | DC |
Weight | 0.61600 LB |
Width | 1.970 IN |
