3RT20151FB41 | CONTACTOR S00 7A 24VDC 1NO SCRW | Siemens Electrical

Contactor, AC-3, 3KW/400V, 1NO, DC 24V, w. integrated diode 3-pole, sz s00 screw terminal

Brand: Siemens ElectricalSKU: 3RT20151FB41

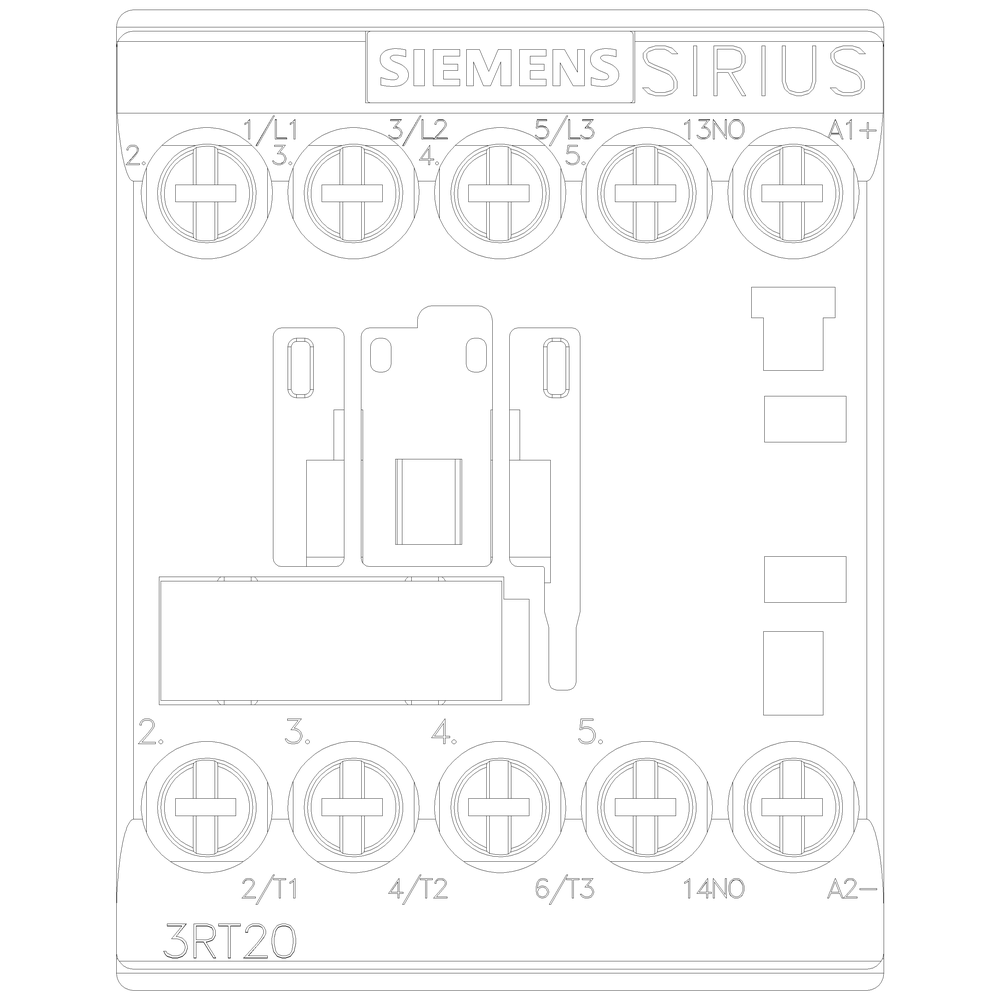

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20151FB41

Item Number	3RT20151FB41
Brand	Siemens Electrical
Height	2.800 IN
Length	3 IN
Modular version	TRUE
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.291666666666667
Rated operation current Ie at AC-4; 400 V	6.5 A
Rated operation power at AC-3; 400 V	3 kW
Rated operation power at AC-4; 400 V	3 kW
Rated operation power NEMA	2.20649625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	0.74500 LB
Width	2.900 IN
