Documents: 3RT20151CK643MA0
3RT20151CK643MA0 | CONTACTOR S00 7A 120VAC 2NO/2NC SCRW | Siemens Electrical
Contactor, AC-3, 3KW/400V, 2NO+2NC, AC 110v 50HZ 120v 60HZ, w. plugged-on varistor 3pole, sz. s00 screw terminal permanently mounted aux. switch

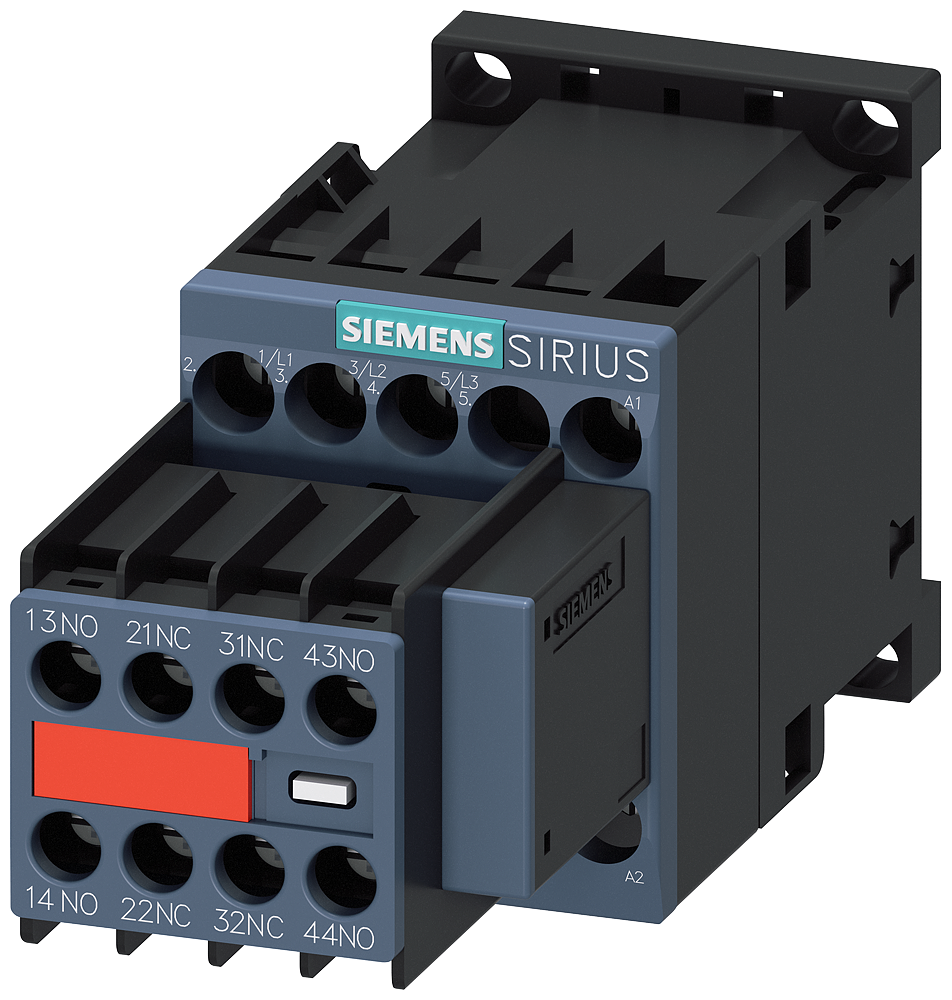

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20151CK643MA0
Overview Details for 3RT20151CK643MA0
Specifications
Item Number | 3RT20151CK643MA0 |
Brand | Siemens Electrical |
Height | 2.560 IN |
Length | 4.88200 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 2 |
Number of auxiliary contacts as normally open contact | 2 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 110 V |
Rated control supply voltage Us at AC 60HZ | 120 V |
Rated operation current Ie at AC-1; 400 V | 18 A |
Rated operation current Ie at AC-3; 400 V | 0.291666666666667 |
Rated operation current Ie at AC-4; 400 V | 6.5 A |
Rated operation power at AC-3; 400 V | 3 kW |
Rated operation power NEMA | 2.20649625 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 0.61600 LB |
Width | 2.04800 IN |
