3RT14666SP363PA0 | Contact. AC1: 400A 2NO+2NC F-PLC-IN | Siemens Electrical

Contactor, AC-1, 400 A/690 V/40 Â°C, S10, 3-pole, 200-277 V AC/DC, F-PLC-IN with varistor, 2 NO+2 NC, permanently mounted, Connection rail/ screw terminal

Brand: Siemens ElectricalSKU: 3RT14666SP363PA0

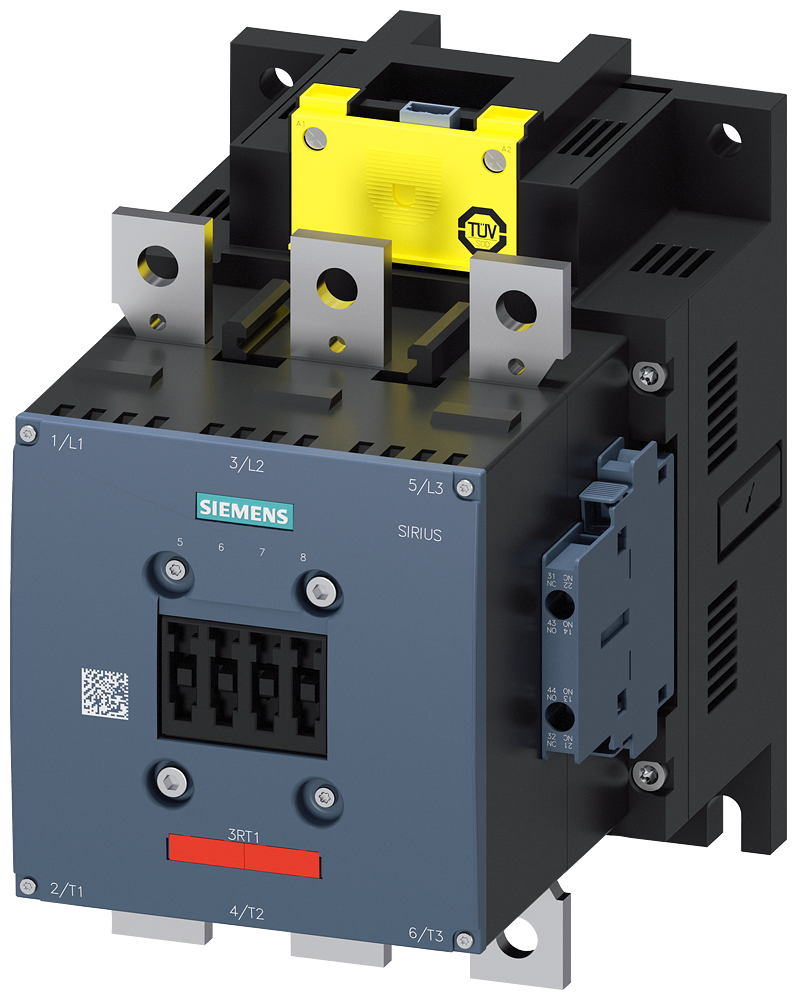

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT14666SP363PA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT14666SP363PA0

Specifications

Item Number	3RT14666SP363PA0
Brand	Siemens Electrical
freeship	upsground
Height	9.060 IN
Length	10.630 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Rated control supply voltage Us at AC 50HZ	200 V
Rated control supply voltage Us at AC 60HZ	200 V
Rated control supply voltage Us at DC	200 V
Rated operation current Ie at AC-1; 400 V	400 A
Rated operation current Ie at AC-3; 400 V	138 A
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.29700 LB
Width	7.870 IN
