3RT1466-6NF36 | CONTACTOR RES S10 400A 96-127VUC 3P BAR | Siemens Electrical

Contactor,IEC,Sirius,3 Pole Resistive,3 Pole,Non-Reversing 96 - 127 AC/DC Coil Frame Size S10,N/AA Panel Mount 2 NO <(>&<)> 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 3

Brand: Siemens ElectricalSKU: 3RT1466-6NF36

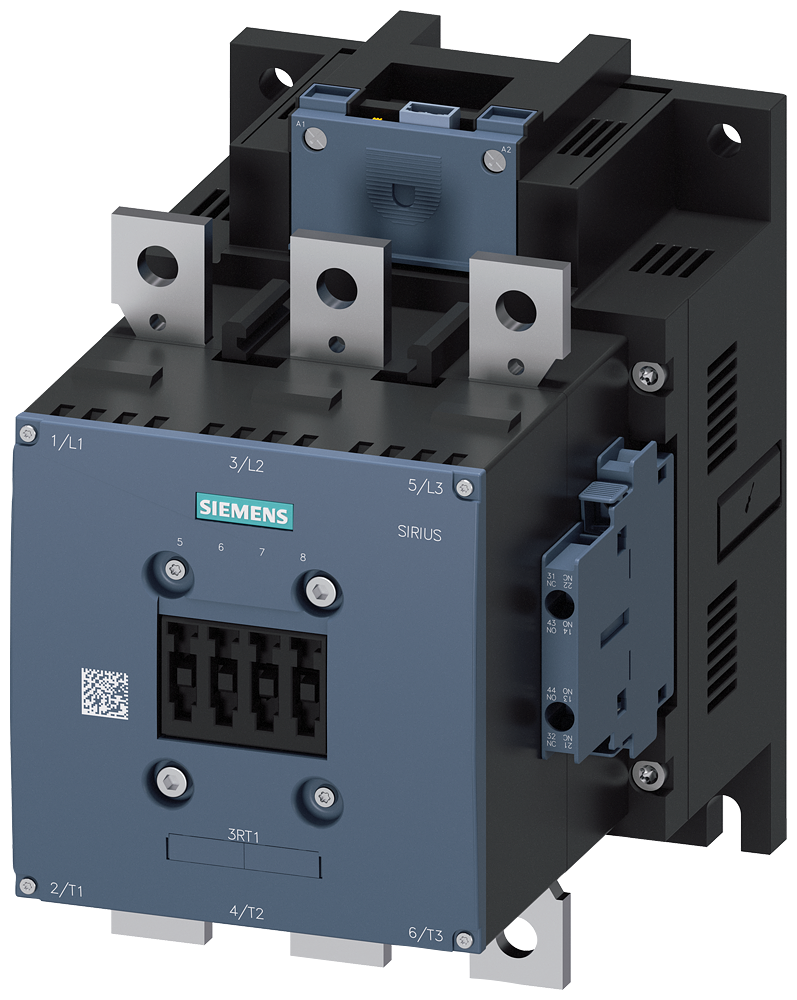

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1466-6NF36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1466-6NF36

Specifications

Item Number	3RT1466-6NF36
Brand	Siemens Electrical
freeship	upsground
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Rated control supply voltage Us at AC 50HZ	96 V
Rated control supply voltage Us at AC 60HZ	96 V
Rated control supply voltage Us at DC	96 V
Rated operation current Ie at AC-1; 400 V	400 A
Rated operation current Ie at AC-3; 400 V	138 A
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.790 LB
Width	10.440 IN
