3RT1466-6AB36 | CONTACTOR RES S10 275A 23-26VUC 3P BAR | Siemens Electrical

DRIVE: CONVENTIONAL RAIL CONNECTIONS 3-POLE, SIZE S10 AUXILIARY CONTACTS 2NO+2NC AC/DC OPERATION 23-26V UC CONTACTOR, 400A/AC-1

Brand: Siemens ElectricalSKU: 3RT1466-6AB36

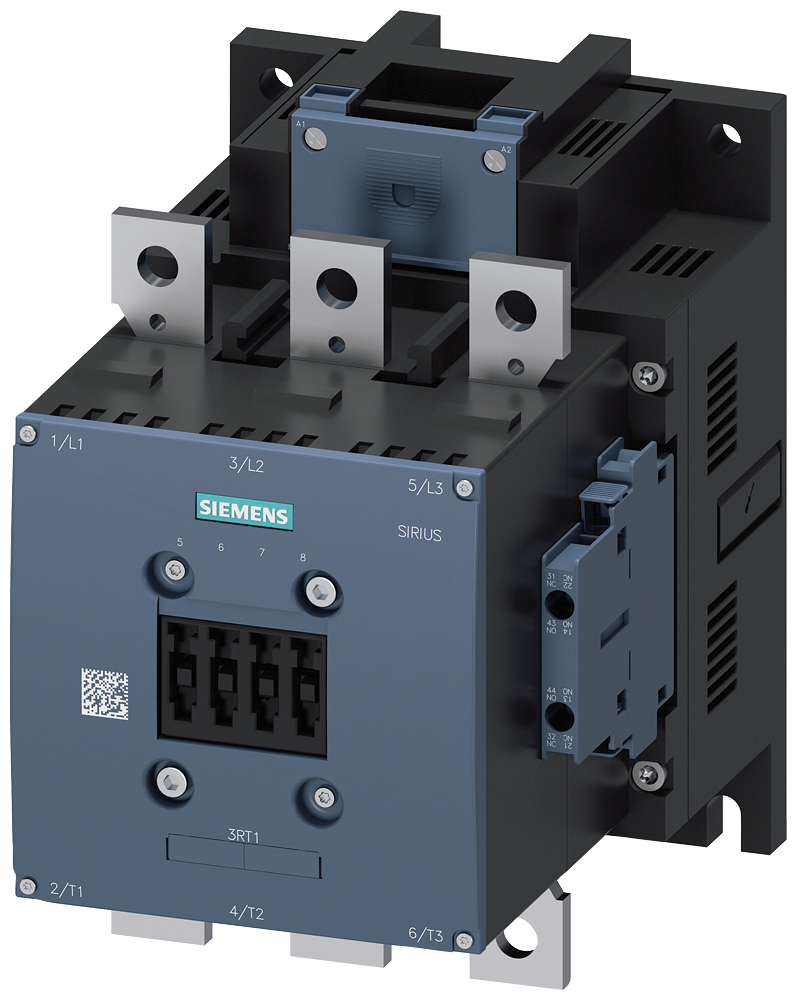

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT1466-6AB36

Item Number	3RT1466-6AB36
Brand	Siemens Electrical
freeship	upsground
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Rated control supply voltage Us at AC 50HZ	23 V
Rated control supply voltage Us at AC 60HZ	23 V
Rated control supply voltage Us at DC	23 V
Rated operation current Ie at AC-1; 400 V	400 A
Rated operation current Ie at AC-3; 400 V	138 A
Rated operation power NEMA	91.93734375 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.47600 LB
Width	10.440 IN
