Documents: 3RT14566PF35

Datasheet

3RT14566PF35 | CONTACTOR. 275A/AC-1 | Siemens Electrical

Contactor. AC-1. 275 A/690 V/40 Â°C. S6. 3-pole. 96-127 V AC/DC. PLC-IN optional. with varistor. 1 NO+1 NC. connection bar/ screw terminal. remaining life time

Brand: Siemens ElectricalSKU: 3RT14566PF35

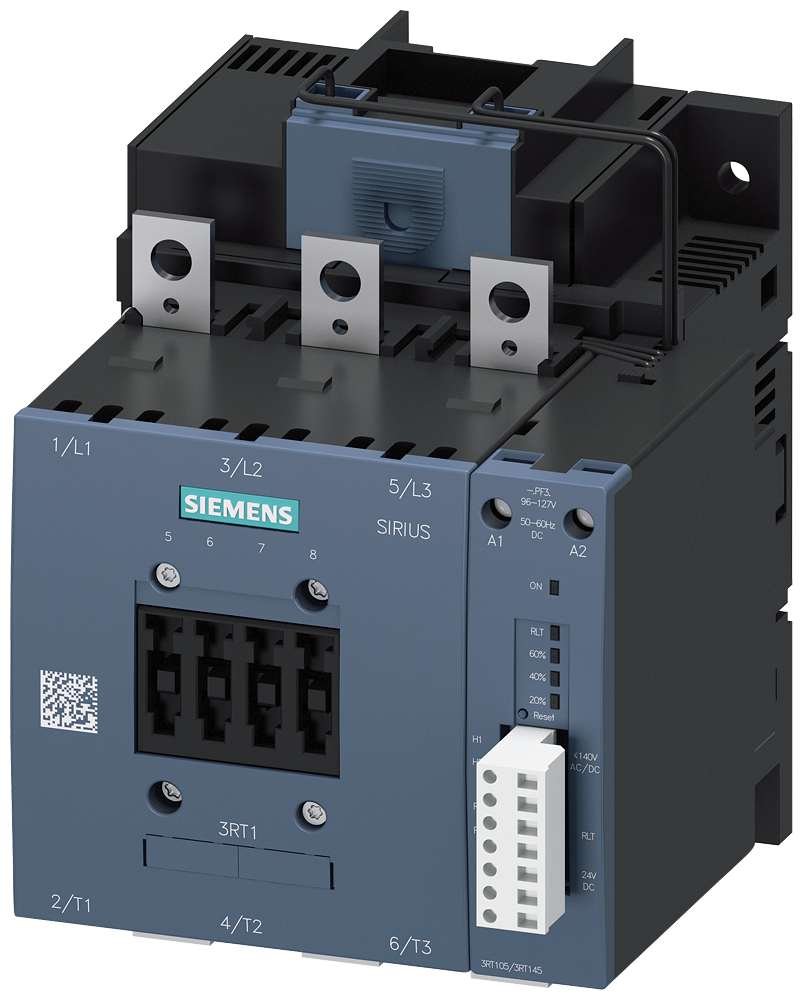

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT14566PF35

Jump to: Overview & Specifications Reviews

Overview Details for 3RT14566PF35

Specifications

Item Number	3RT14566PF35
Brand	Siemens Electrical
freeship	upsground
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Rated control supply voltage Us at AC 50HZ	96 V
Rated control supply voltage Us at AC 60HZ	96 V
Rated control supply voltage Us at DC	96 V
Rated operation current Ie at AC-1; 400 V	275 A
Rated operation current Ie at AC-3; 400 V	97 A
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	8.58700 LB
