Documents: 3RT1456-6AT36
3RT1456-6AT36 | CONTACTOR RES S6 275A 575-600VUC 3P BAR | Siemens Electrical
DRIVE: CONVENTIONAL RAIL CONNECTIONS 3 POLE, SIZE S6 AUXIL. CONTACTS 2NO+2NC AC/DC OPERATION UC 575-600V CONTACTOR, 275A/AC-1

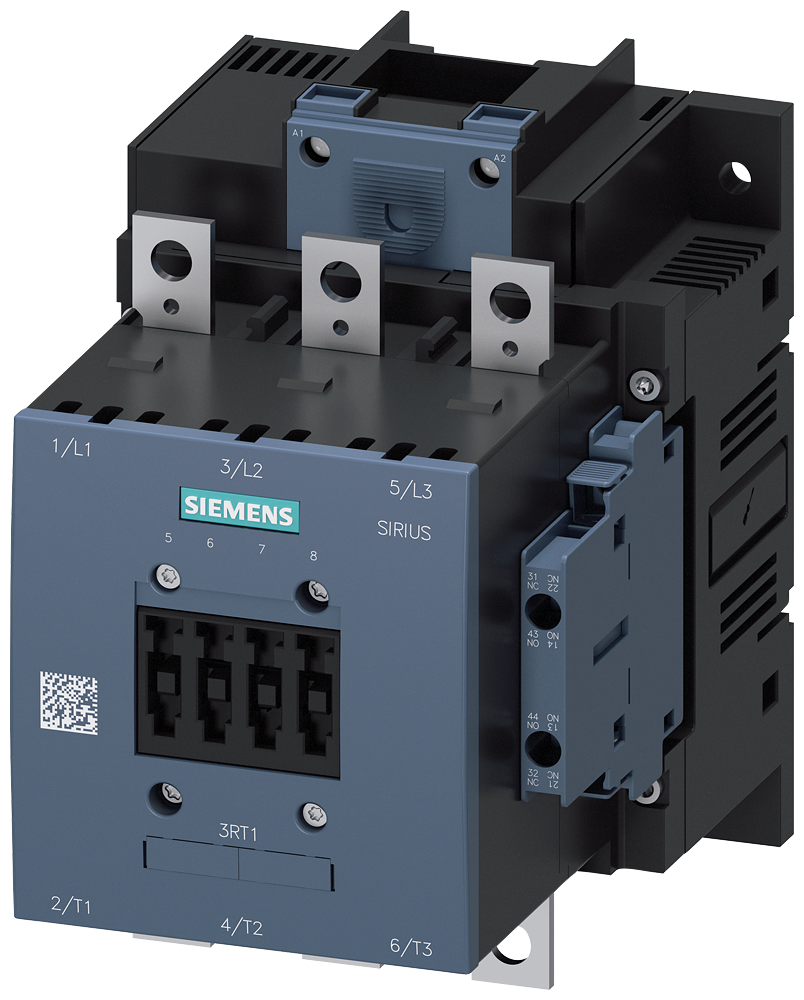

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT1456-6AT36
Overview Details for 3RT1456-6AT36
Specifications
Item Number | 3RT1456-6AT36 |
Brand | Siemens Electrical |
Height | 7.130 IN |
Length | 5.080 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 2 |
Number of auxiliary contacts as normally open contact | 2 |
Number of main contacts as normally open contact | 3 |
Number of normally closed contacts as main contact | 0 |
Rated control supply voltage Us at AC 50HZ | 575 V |
Rated control supply voltage Us at AC 60HZ | 575 V |
Rated control supply voltage Us at DC | 575 V |
Rated operation current Ie at AC-1; 400 V | 275 A |
Rated operation current Ie at AC-3; 400 V | 97 A |
Rated operation power NEMA | 55.16240625 kW |
Type of electrical connection of main circuit | Rail connection |
Voltage type for actuating | AC/DC |
Weight | 6.820 LB |
Width | 7.490 IN |
