Documents: 3RT1265-6NB36

Datasheet

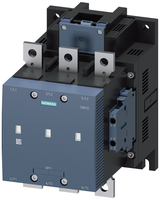

3RT1265-6NB36 | CONTACTOR VAC S10 265A 21-27V 3P BAR | Siemens Electrical

WITH SPS INTERFACE 24V DC DRIVE: ELECTRONIC RAIL CONNECTIONS 3-POLE, SIZE S10 AUXILIARY CONTACTS 2NO+2NC AC/DC OPERATION 21-27.3V UC VAC. CONTACTOR, 132KW/400V/AC-3

Brand: Siemens ElectricalSKU: 3RT1265-6NB36

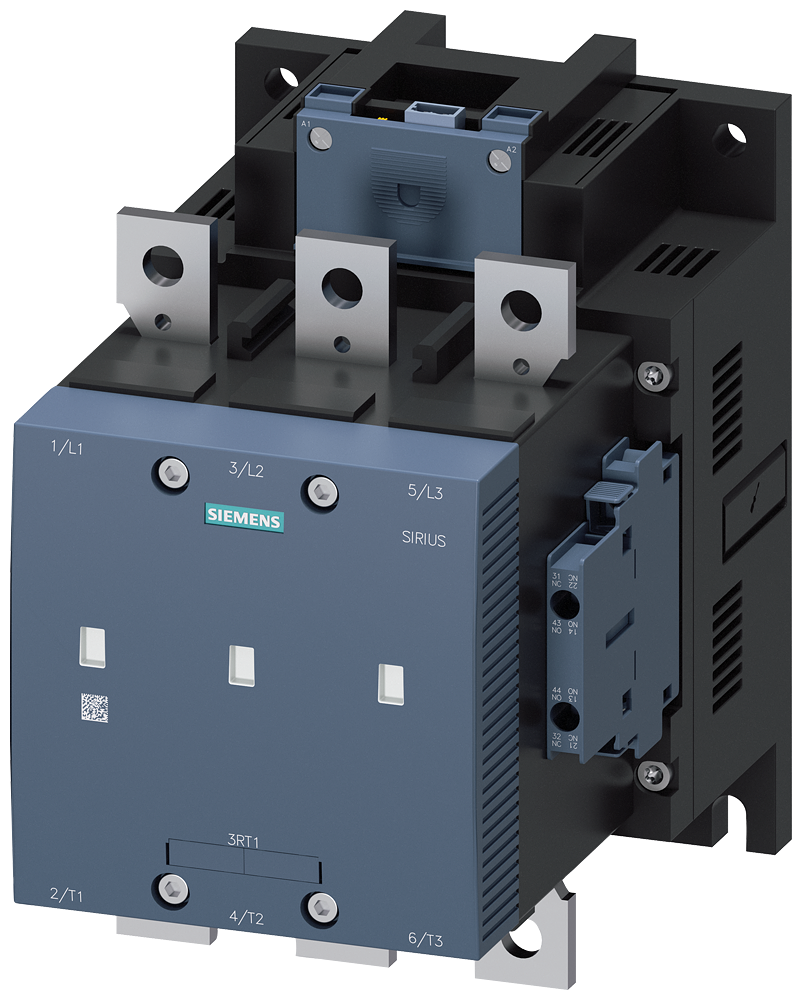

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1265-6NB36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1265-6NB36

Specifications

Item Number	3RT1265-6NB36
Brand	Siemens Electrical
freeship	upsground
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	21 V
Rated control supply voltage Us at AC 60HZ	21 V
Rated control supply voltage Us at DC	21 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	265 A
Rated operation current Ie at AC-4; 400 V	230 A
Rated operation power at AC-3; 400 V	132 kW
Rated operation power at AC-4; 400 V	132 kW
Rated operation power NEMA	147.09975 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	16.19200 LB
Width	10.440 IN
