3RT1265-6AV36 | CONTACTOR VAC S10 265A 380-420V 3P BAR | Siemens Electrical

DRIVE: CONVENTIONAL RAIL CONNECTIONS 3-POLE, SIZE S10 AUXILIARY CONTACTS 2NO+2NC AC/DC OPERATION 380-420V UC VAC. CONTACTOR, 132KW/400V/AC-3

Brand: Siemens ElectricalSKU: 3RT1265-6AV36

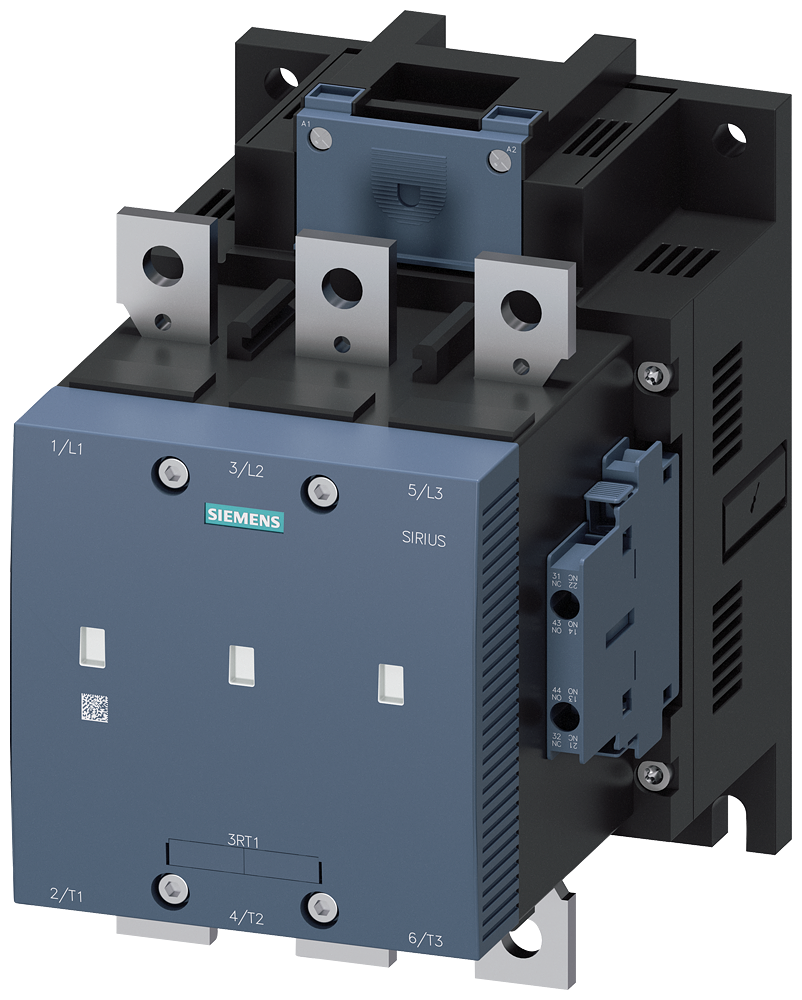

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT1265-6AV36

Item Number	3RT1265-6AV36
Brand	Siemens Electrical
freeship	upsground
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	380 V
Rated control supply voltage Us at AC 60HZ	380 V
Rated control supply voltage Us at DC	380 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	265 A
Rated operation current Ie at AC-4; 400 V	230 A
Rated operation power at AC-3; 400 V	132 kW
Rated operation power at AC-4; 400 V	132 kW
Rated operation power NEMA	147.09975 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	16.03800 LB
Width	10.440 IN
