Documents: 3RT1264-6NF36
3RT1264-6NF36 | CONTACTOR VAC S10 225A 96-127V 3P BAR | Siemens Electrical
Contactor,IEC,Sirius,Vacuum 3 Pole,Non-Reversing 96 - 127 AC/DC Coil Frame Size S10,225A Panel Mount 2 NO <(>&<)> 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 3

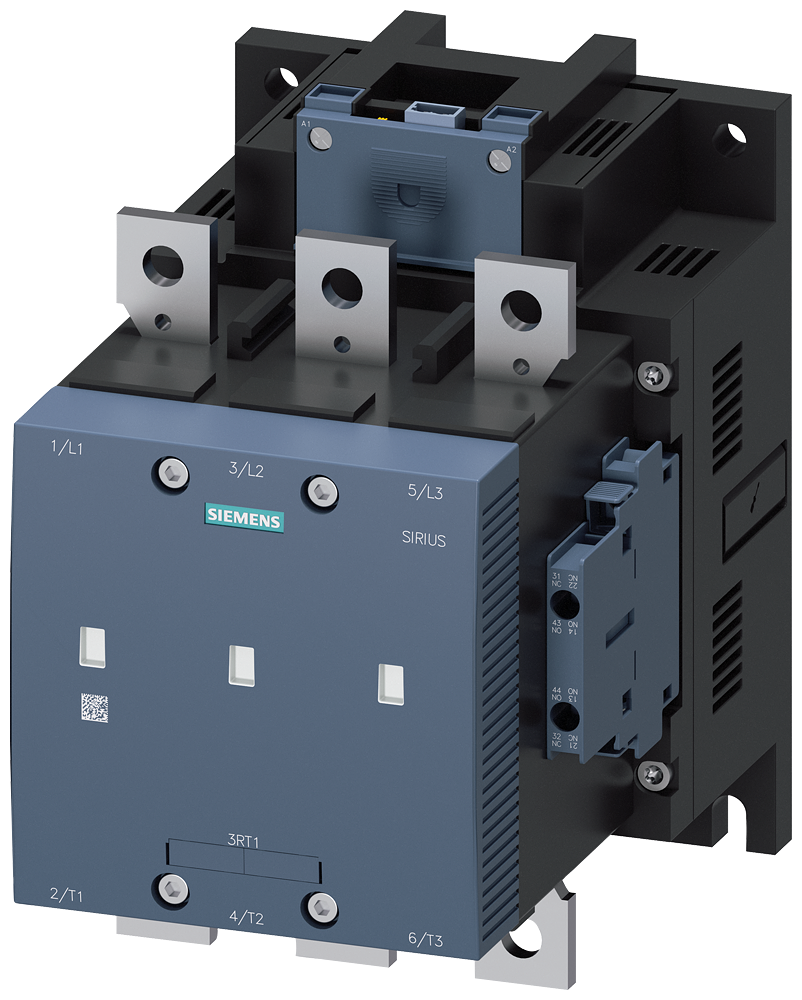

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT1264-6NF36
Overview Details for 3RT1264-6NF36
Specifications
Item Number | 3RT1264-6NF36 |
Brand | Siemens Electrical |
freeship | upsground |
Height | 9.220 IN |
Length | 7.720 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 2 |
Number of auxiliary contacts as normally open contact | 2 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 96 V |
Rated control supply voltage Us at AC 60HZ | 96 V |
Rated control supply voltage Us at DC | 96 V |
Rated operation current Ie at AC-1; 400 V | 330 A |
Rated operation current Ie at AC-3; 400 V | 225 A |
Rated operation current Ie at AC-4; 400 V | 195 A |
Rated operation power at AC-3; 400 V | 110 kW |
Rated operation power at AC-4; 400 V | 110 kW |
Rated operation power NEMA | 110.3248125 kW |
Type of electrical connection of main circuit | Rail connection |
Voltage type for actuating | AC/DC |
Weight | 16.280 LB |
Width | 10.440 IN |
