Documents: 3RT10666PF35

Datasheet

3RT10666PF35 | CONTACT. AC3:132KW/400V 1NO1NC UC96-127V | Siemens Electrical

Power contactor, AC-3 300 A, 160 kW / 400 V AC (50-60 Hz) / DC operation 96-127 V UC Auxiliary contacts 1 NO + 1 NC 3-pole, Size S10 Busbar connections Drive: electronic with PLC / SIMOCODE interface and RLT signal

Brand: Siemens ElectricalSKU: 3RT10666PF35

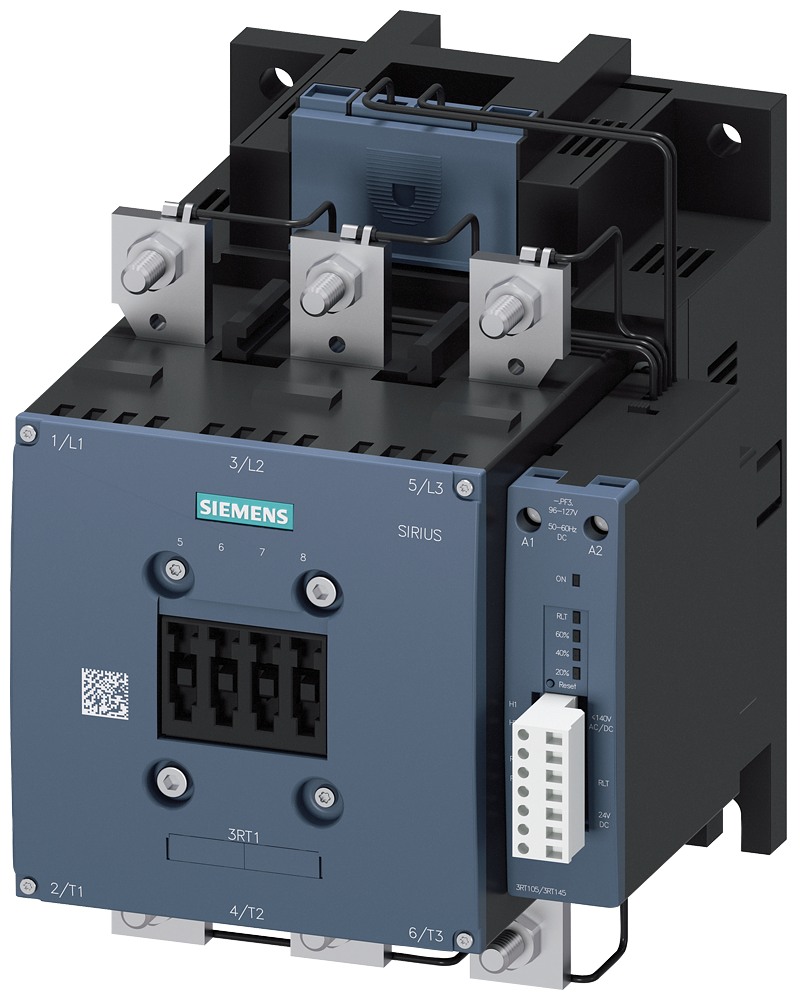

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10666PF35

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10666PF35

Specifications

Item Number	3RT10666PF35
Brand	Siemens Electrical
freeship	upsground
Height	10.710 IN
Length	9.170 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	96 V
Rated control supply voltage Us at AC 60HZ	96 V
Rated control supply voltage Us at DC	96 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	300 A
Rated operation current Ie at AC-4; 400 V	280 A
Rated operation power at AC-3; 400 V	160 kW
Rated operation power at AC-4; 400 V	160 kW
Rated operation power NEMA	183.8746875 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	16.13100 LB
Width	1.380 IN
