Documents: 3RT10666NB363PA0

Datasheet

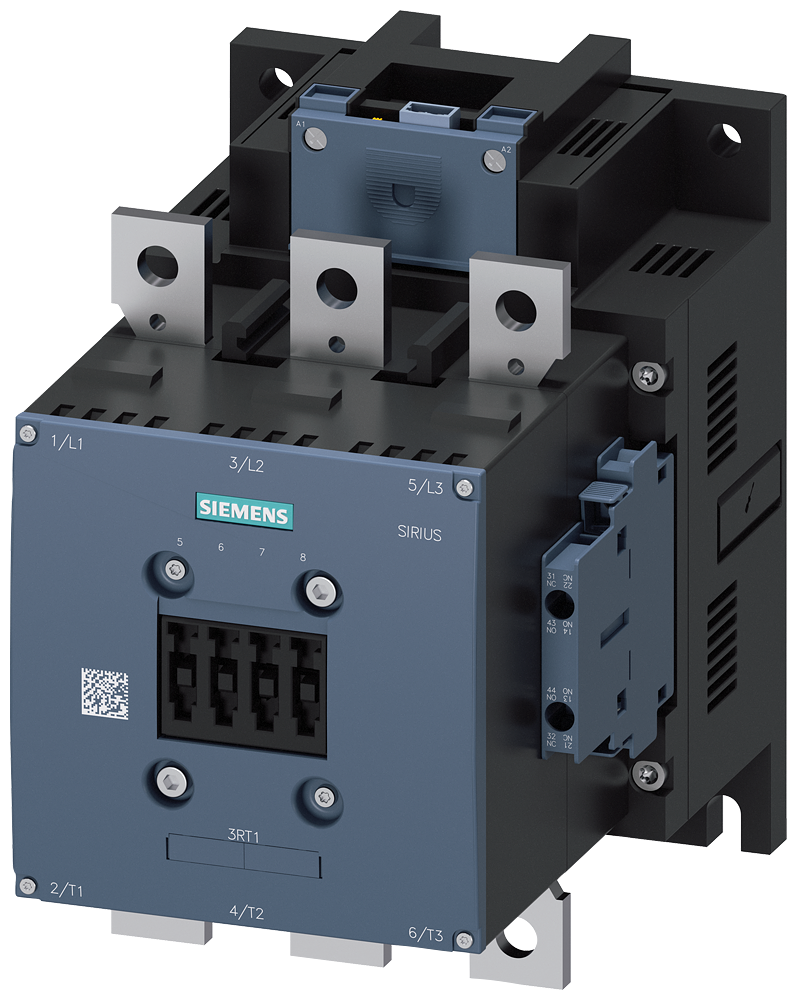

3RT10666NB363PA0 | CONTACTOR S10 300A 21-27VUC 2NO/2NC FIX | Siemens Electrical

CONTACTOR, 160KW/400V/AC-3 AC(40...60HZ)/DC OPERATION UC 21-27.3V AUXILIARY CONTACTS 2NO+2NC 3-POLE, SIZE S10 BAR CONNECTIONS ELECTRONIC OPERATING MECHANISM WITH 24V DC PLC INTERFACE SCREW TERMINAL .

Brand: Siemens ElectricalSKU: 3RT10666NB363PA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10666NB363PA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10666NB363PA0

Specifications

Item Number	3RT10666NB363PA0
Brand	Siemens Electrical
Connection type	Connecting rail
freeship	upsground
Height	9.21300 IN
Length	7.71700 IN
max. rated AC voltage for controls (60 Hz)	27.3 volt
Max. rated AC voltage for controls; 50 Hz	27.3 volt
Max. rated DC voltage for controls	27.3 volt
min. rated control voltage Us with AC 50 Hz	21 volt
min. rated control voltage Us with DC	21 volt
Number of making contacts and main contacts	3
Power loss per pole; current-dependent [PlIp]	22 watt
Power loss; static; current-independent [Pls]	3.4 watt
Rated current [In] for the power loss specification	300 ampere
Rated operating current Ie with AC-3; 400 V	300 ampere
Rated operating power with AC-3; 400 V	160 kilowatt
rated operational power AC-1 at 400 V	197 kilowatt
suitable for mounting onto standard rails	FALSE
suitable for series installation	TRUE
Weight	14.68500 LB
Width	10.43400 IN
