Documents: 3RT10666LA06

Datasheet

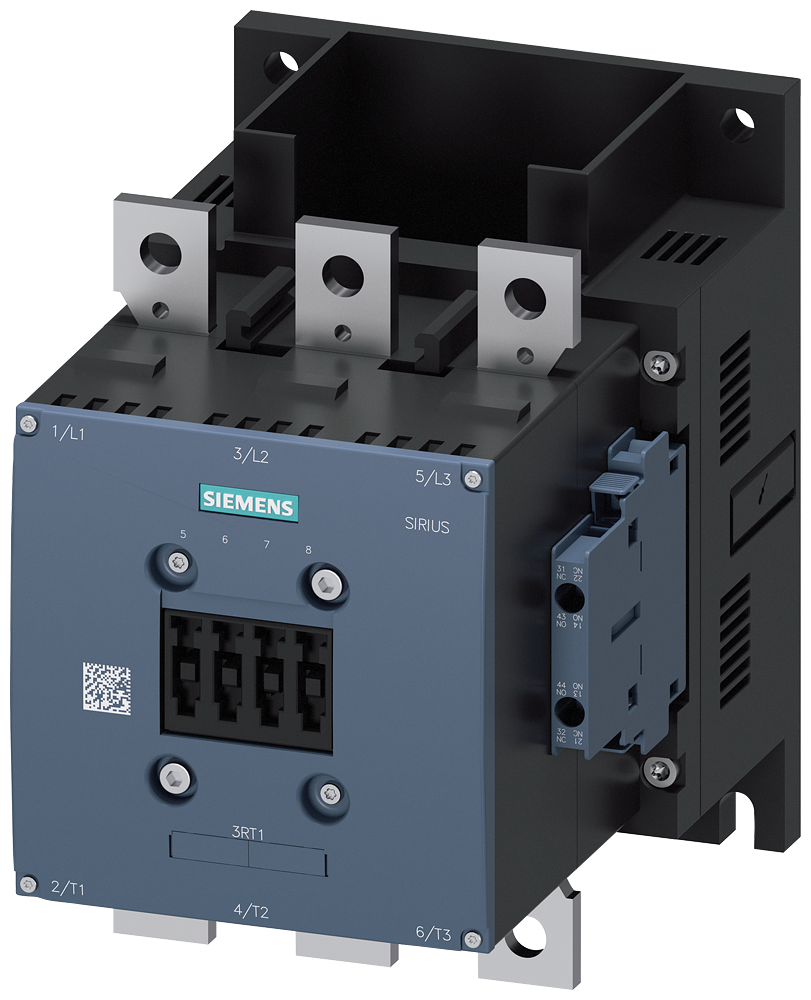

3RT10666LA06 | CONTACT. AC3:160KW/400V 2NO+2NC W/O COIL | Siemens Electrical

Power contactor. AC-3 300 A. 160 kW / 400 V without coil Auxiliary contacts 2 NO + 2 NC 3-pole. Size S10 Main conductor: Busbar connections Drive: conventional Auxiliary conductor: Screw terminals

Brand: Siemens ElectricalSKU: 3RT10666LA06

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10666LA06

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10666LA06

Specifications

Item Number	3RT10666LA06
Brand	Siemens Electrical
freeship	upsground
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	300 A
Rated operation current Ie at AC-4; 400 V	280 A
Rated operation power at AC-3; 400 V	160 kW
Rated operation power at AC-4; 400 V	160 kW
Rated operation power NEMA	183.8746875 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	13.04500 LB
