Documents: 3RT10666AF360UA0

Datasheet

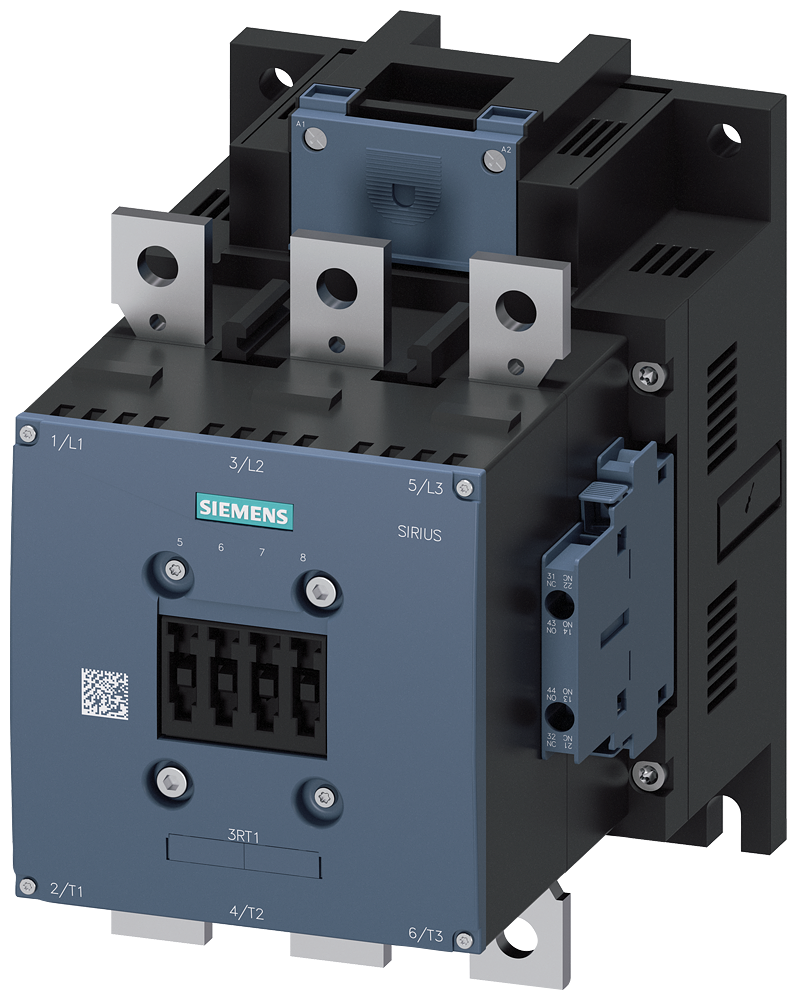

3RT10666AF360UA0 | CONTACTOR NEMA 5 300A 110-127VUC 3P BAR | Siemens Electrical

Contactor, 160KW/400v/AC-3 AC(40...60HZ)/DC operation uc 110-127v auxiliary contacts 2NO+2NC 3-pole, size s10 bar connections convent. operating mechanism screw terminal NEMA type

Brand: Siemens ElectricalSKU: 3RT10666AF360UA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10666AF360UA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10666AF360UA0

Specifications

Item Number	3RT10666AF360UA0
Brand	Siemens Electrical
freeship	upsground
Height	9.60700 IN
Length	10.82700 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	110 V
Rated control supply voltage Us at DC	110 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	270 A
Rated operation current Ie at AC-4; 400 V	280 A
Rated operation power at AC-3; 400 V	160 kW
Rated operation power at AC-4; 400 V	160 kW
Rated operation power NEMA	147.09975 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.59700 LB
Width	7.91400 IN
