Documents: 3RT1066-6AB36-0UA0

Datasheet

3RT1066-6AB36-0UA0 | CONTACTOR. 160KW/400V 2NO+2NC UC23-26V | Siemens Electrical

CONTACTOR. 160KW/400V/AC-3 AC(40...60HZ)/DC OPERATION AC/DC 23 - 26V AUXILIARY CONTACTS 2NO+2NC 3-POLE. SIZE S10 BAR CONNECTIONS CONVENT. OPERATING MECHANISM SCREW TERMINAL NEMA TYPE

Brand: Siemens ElectricalSKU: 3RT1066-6AB36-0UA0

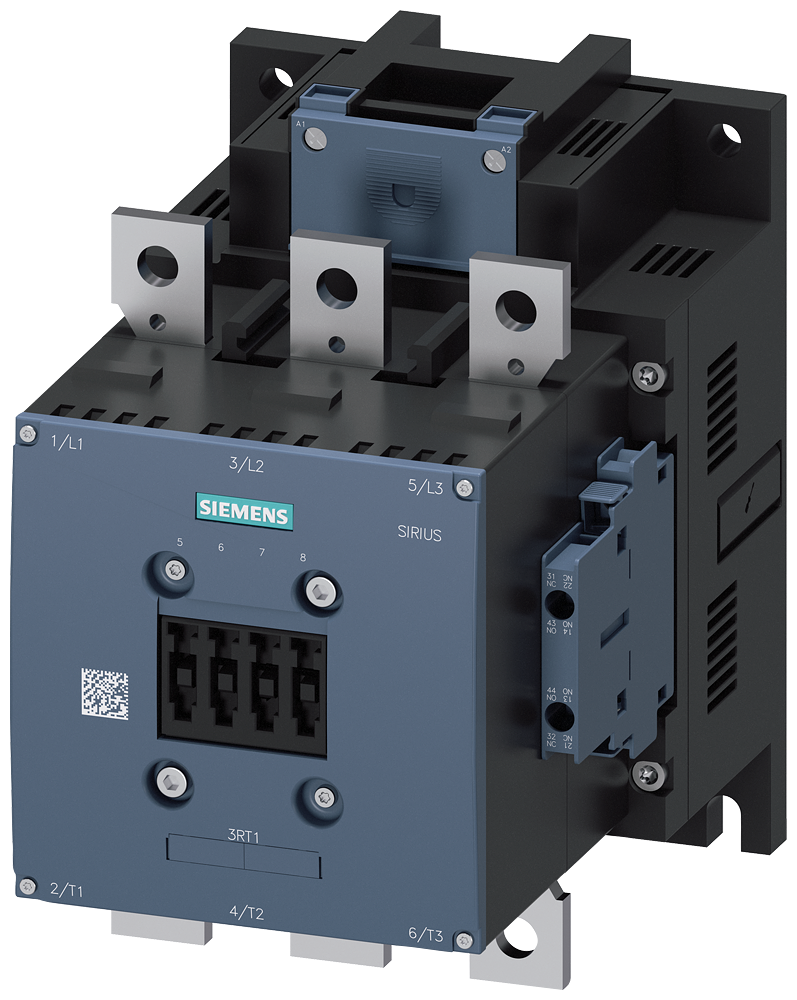

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1066-6AB36-0UA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1066-6AB36-0UA0

Specifications

Item Number	3RT1066-6AB36-0UA0
Brand	Siemens Electrical
freeship	upsground
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	23 V
Rated control supply voltage Us at AC 60HZ	23 V
Rated control supply voltage Us at DC	23 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	270 A
Rated operation current Ie at AC-4; 400 V	280 A
Rated operation power at AC-3; 400 V	160 kW
Rated operation power at AC-4; 400 V	160 kW
Rated operation power NEMA	147.09975 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.43200 LB
