3RT10656NP363PA0 | CONTACTOR | 132KW/400V/AC-3 | Siemens Electrical

Power contactor, AC-3 265 A, 132 kW / 400 V AC (50-60 Hz) / DC operation 200-277 V AC/DC auxiliary contacts 2 NO + 2 NC 3-pole, frame size S10 busbar connections drive: electronic with PLC interface 24 V DC screw terminal captive auxiliary switch block DIN 50012

Brand: Siemens ElectricalSKU: 3RT10656NP363PA0

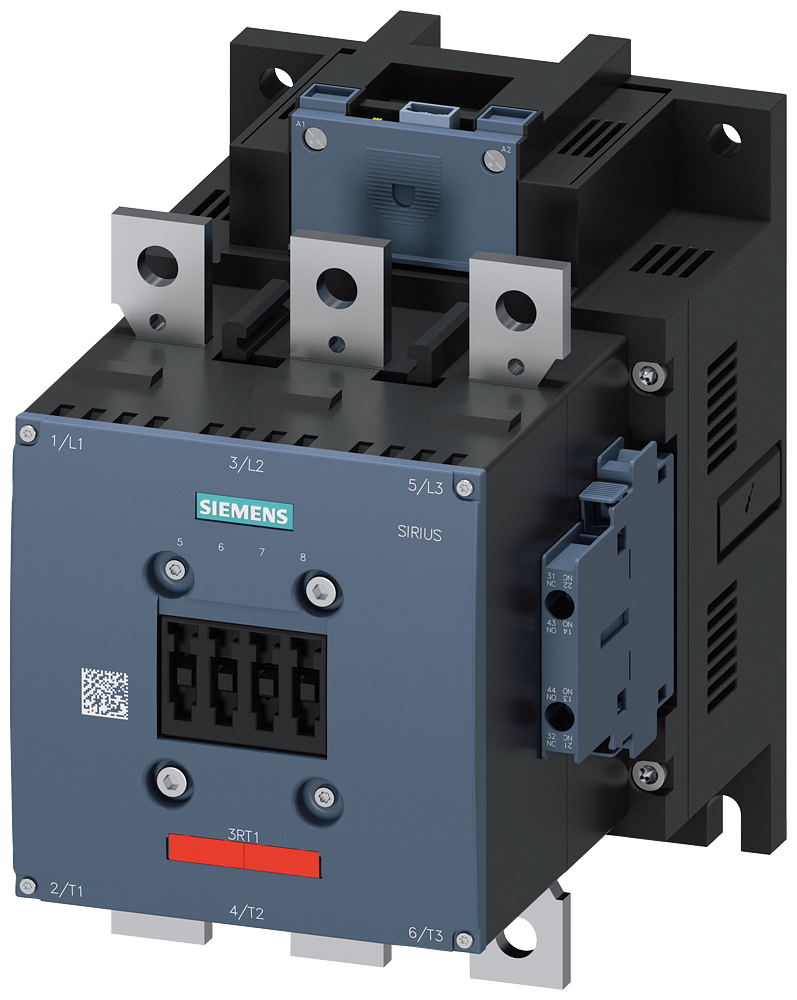

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10656NP363PA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10656NP363PA0

Specifications

Item Number	3RT10656NP363PA0
Brand	Siemens Electrical
freeship	upsground
Height	9.530 IN
Length	10.670 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	200 V
Rated control supply voltage Us at AC 60HZ	200 V
Rated control supply voltage Us at DC	200 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	265 A
Rated operation current Ie at AC-4; 400 V	230 A
Rated operation power at AC-3; 400 V	132 kW
Rated operation power at AC-4; 400 V	132 kW
Rated operation power NEMA	147.09975 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.420 LB
Width	7.830 IN
