Documents: 3RT10656LA06

Datasheet

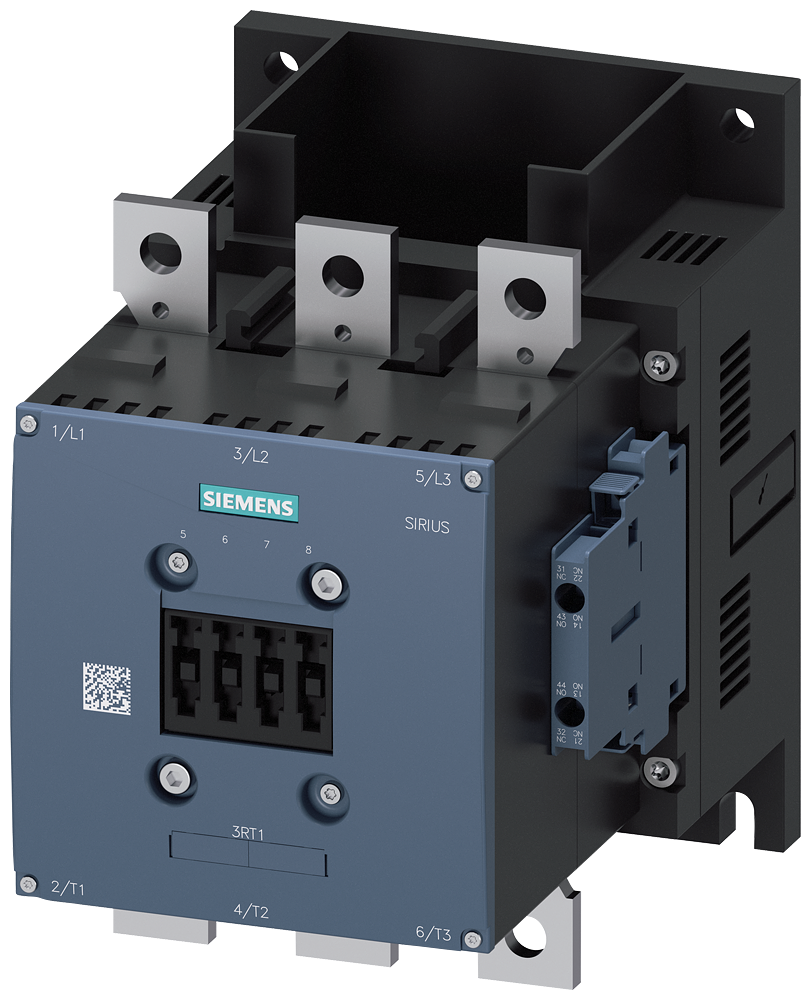

3RT10656LA06 | CONTACTOR S10 265A NO-COIL 3P BAR | Siemens Electrical

Contactor, 132KW/400v/AC-3 without coil auxiliary contacts 2NO+2NC 3-pole, size s10 main cond. bar connections convent. operating mechanism aux. cond. screw terminals

Brand: Siemens ElectricalSKU: 3RT10656LA06

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10656LA06

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10656LA06

Specifications

Item Number	3RT10656LA06
Brand	Siemens Electrical
freeship	upsground
Height	8.3 IN
Length	15.250 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	265 A
Rated operation current Ie at AC-4; 400 V	230 A
Rated operation power at AC-3; 400 V	132 kW
Rated operation power at AC-4; 400 V	132 kW
Rated operation power NEMA	147.09975 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	12.940 LB
Width	24.150 IN
