Documents: 3RT10652NF36

Datasheet

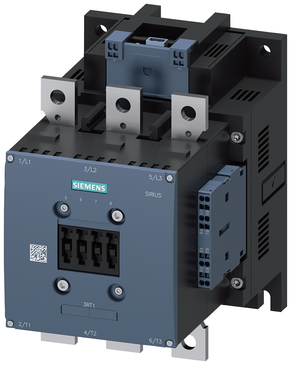

3RT10652NF36 | CONTACTOR | S10 | 400V | 132KW | AC-3 | 3POLE | Siemens Electrical

CONTACTOR, 132KW/400V/AC-3 AC(40...60HZ)/DC OPERATION UC 96-127V AUXILIARY CONTACTS 2NO+2NC 3-POLE, SIZE S10 BAR CONNECTIONS ELECTRONIC OPERATING MECHANISM WITH 24 V DC PLC INTERFACE CAGE CLAMP TERMINAL

Brand: Siemens ElectricalSKU: 3RT10652NF36

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10652NF36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10652NF36

Specifications

Item Number	3RT10652NF36
Brand	Siemens Electrical
freeship	upsground
Height	9.21300 IN
Length	7.71700 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	96 V
Rated control supply voltage Us at AC 60HZ	96 V
Rated control supply voltage Us at DC	96 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	265 A
Rated operation current Ie at AC-4; 400 V	230 A
Rated operation power at AC-3; 400 V	132 kW
Rated operation power at AC-4; 400 V	132 kW
Rated operation power NEMA	147.09975 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.67400 LB
Width	10.43400 IN
