Documents: 3RT1065-2AB36

Datasheet

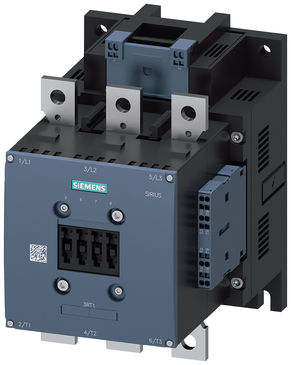

3RT1065-2AB36 | CONTACTOR S10 23-26VUC 2NC/2NO CC | Siemens Electrical

Contactor, 132KW/400v/AC-3 AC(40...60HZ)/DC operation uc 23-26v auxiliary contacts 2NO+2NC 3-pole, size s10 bar connections convent. operating mechanism cage clamp terminal

Brand: Siemens ElectricalSKU: 3RT1065-2AB36

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1065-2AB36

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1065-2AB36

Specifications

Item Number	3RT1065-2AB36
Brand	Siemens Electrical
freeship	upsground
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	23 V
Rated control supply voltage Us at AC 60HZ	23 V
Rated control supply voltage Us at DC	23 V
Rated operation current Ie at AC-1; 400 V	330 A
Rated operation current Ie at AC-3; 400 V	265 A
Rated operation current Ie at AC-4; 400 V	230 A
Rated operation power at AC-3; 400 V	132 kW
Rated operation power at AC-4; 400 V	132 kW
Rated operation power NEMA	147.09975 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	12.23600 LB
Width	10.440 IN
