Documents: 3RT10646LA06

Datasheet

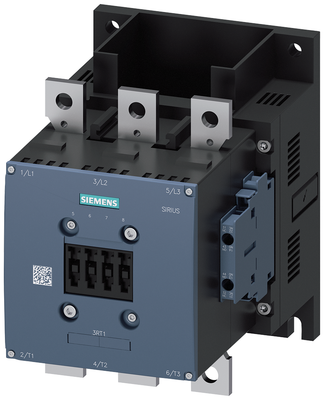

3RT10646LA06 | CONTACTOR | 110KW/400V/AC-3 | Siemens Electrical

Power contactor, AC-3e/AC-3 225 A, 110 kW / 400 V without operating mechanism 3-pole, auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal

Brand: Siemens ElectricalSKU: 3RT10646LA06

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10646LA06

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10646LA06

Specifications

Item Number	3RT10646LA06
Brand	Siemens Electrical
Height	9.210 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated operation current Ie at AC-1; 400 V	275 A
Rated operation current Ie at AC-3; 400 V	225 A
Rated operation current Ie at AC-4; 400 V	195 A
Rated operation power at AC-3; 400 V	110 kW
Rated operation power at AC-4; 400 V	110 kW
Rated operation power NEMA	110.3248125 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	12.84200 LB
Width	10.430 IN
