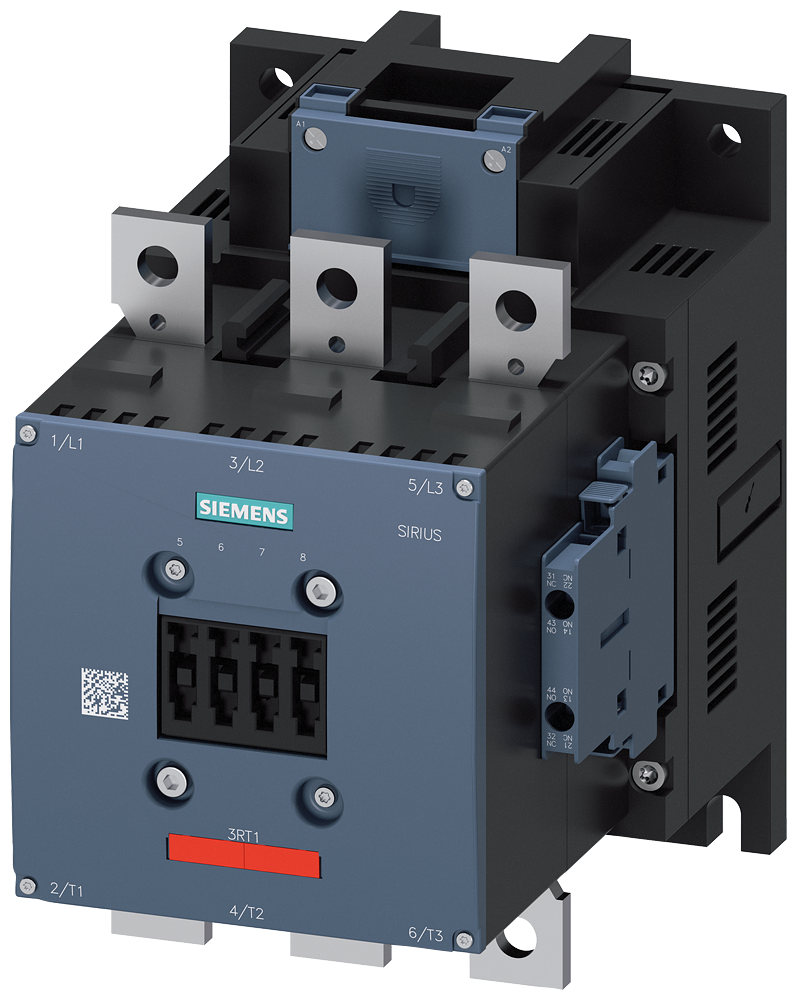

3RT10646AP363PA0 | CONTACTOR | 110KW/400V/AC-3 | Siemens Electrical

Power contactor, AC-3e/AC-3 225 A, 110 kW / 400 V AC (50-60 Hz) / DC Uc: 220-240 V 3-pole, auxiliary contacts 2 NO + 2 NC permanently mounted drive: conventional main circuit: busbar control and auxiliary circuit: screw terminal

Brand: Siemens ElectricalSKU: 3RT10646AP363PA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10646AP363PA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10646AP363PA0

Specifications

Item Number	3RT10646AP363PA0
Brand	Siemens Electrical
Height	9.490 IN
Length	10.790 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	220 V
Rated control supply voltage Us at DC	220 V
Rated operation current Ie at AC-1; 400 V	275 A
Rated operation current Ie at AC-3; 400 V	225 A
Rated operation current Ie at AC-4; 400 V	195 A
Rated operation power at AC-3; 400 V	110 kW
Rated operation power at AC-4; 400 V	110 kW
Rated operation power NEMA	110.3248125 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.19600 LB
Width	8.070 IN
