Documents: 3RT10646AB363PA0

Datasheet

3RT10646AB363PA0 | CONTACTOR S10 225A 23-26VUC 2NO/2NC FIX | Siemens Electrical

CONTACTOR, 110KW/400V/AC-3 AC(40...60HZ)/DC OPERATION UC 23-26V AUXILIARY CONTACTS 2NO+2NC 3-POLE, SIZE S10 BAR CONNECTIONS CONVENT. OPERATING MECHANISM SCREW TERMINAL . .

Brand: Siemens ElectricalSKU: 3RT10646AB363PA0

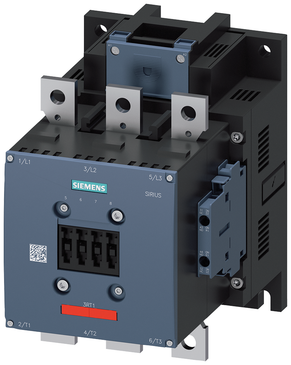

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10646AB363PA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10646AB363PA0

Specifications

Item Number	3RT10646AB363PA0
Brand	Siemens Electrical
freeship	upsground
Height	9.220 IN
Length	7.720 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	23 V
Rated control supply voltage Us at AC 60HZ	23 V
Rated control supply voltage Us at DC	23 V
Rated operation current Ie at AC-1; 400 V	275 A
Rated operation current Ie at AC-3; 400 V	225 A
Rated operation current Ie at AC-4; 400 V	195 A
Rated operation power at AC-3; 400 V	110 kW
Rated operation power at AC-4; 400 V	110 kW
Rated operation power NEMA	110.3248125 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	14.420 LB
Width	10.440 IN
