Documents: 3RT1064-6PF35

Datasheet

3RT1064-6PF35 | CONTACTOR S10 225A 96-127VUC 3P BAR | Siemens Electrical

Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 96 - 127 AC/DC Coil Frame Size S10,225A Panel Mount 1 NO <(>&<)> 1 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 3

Brand: Siemens ElectricalSKU: 3RT1064-6PF35

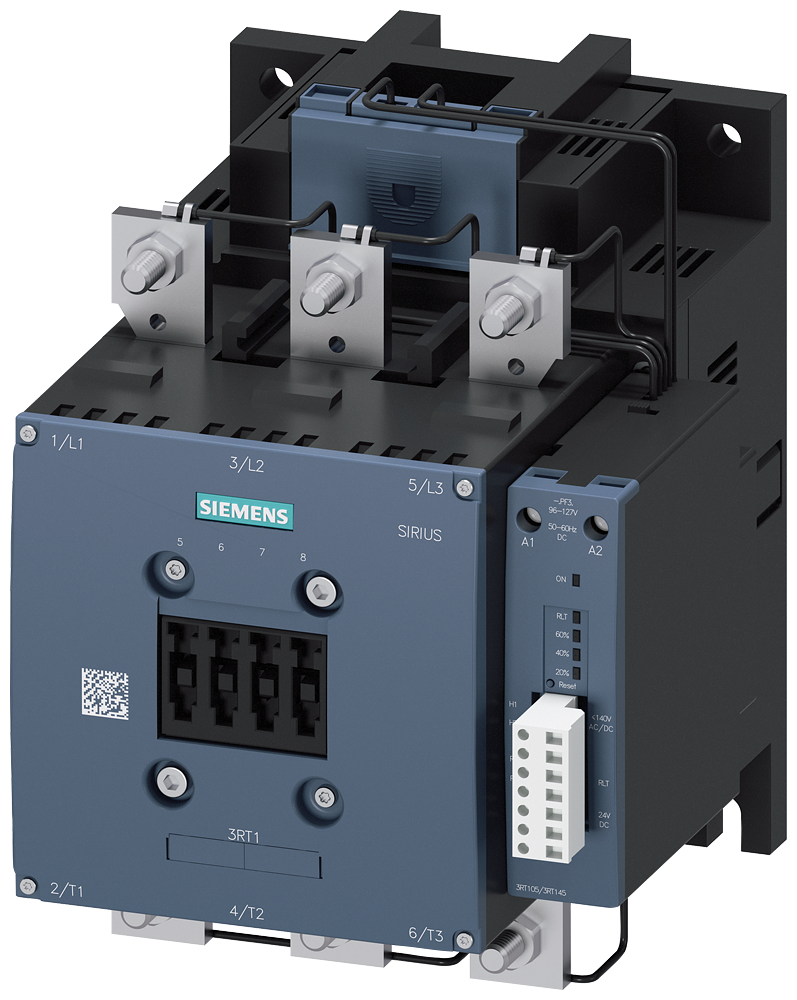

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT1064-6PF35

Jump to: Overview & Specifications Reviews

Overview Details for 3RT1064-6PF35

Specifications

Item Number	3RT1064-6PF35
Brand	Siemens Electrical
freeship	upsground
Height	10.710 IN
Length	9.180 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	96 V
Rated control supply voltage Us at AC 60HZ	96 V
Rated control supply voltage Us at DC	96 V
Rated operation current Ie at AC-1; 400 V	275 A
Rated operation current Ie at AC-3; 400 V	225 A
Rated operation current Ie at AC-4; 400 V	195 A
Rated operation power at AC-3; 400 V	110 kW
Rated operation power at AC-4; 400 V	110 kW
Rated operation power NEMA	110.3248125 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	12.540 LB
Width	11.380 IN
