Documents: 3RT10566PP35

Datasheet

3RT10566PP35 | CONTACTOR. 90KW/400V/AC-3 | Siemens Electrical

Power contactor. AC-3 185 A. 90 kW / 400 V AC (50-60 Hz) / DC operation 200-277 V UC Auxiliary contacts 1 NO + 1 NC 3-pole. Size S6 Busbar connections Drive: electronic with PLC / SIMOCODE interface and RLT signal

Brand: Siemens ElectricalSKU: 3RT10566PP35

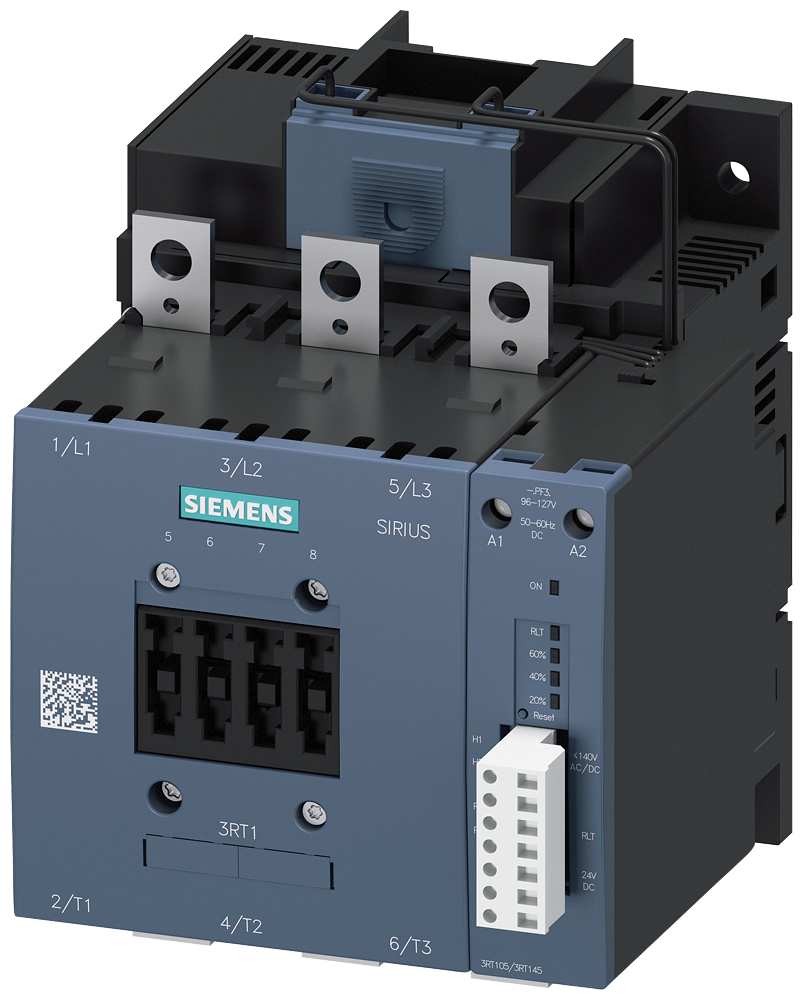

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10566PP35

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10566PP35

Specifications

Item Number	3RT10566PP35
Brand	Siemens Electrical
freeship	upsground
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	200 V
Rated control supply voltage Us at AC 60HZ	200 V
Rated control supply voltage Us at DC	200 V
Rated operation current Ie at AC-1; 400 V	215 A
Rated operation current Ie at AC-3; 400 V	185 A
Rated operation current Ie at AC-4; 400 V	160 A
Rated operation power at AC-3; 400 V	90 kW
Rated operation power at AC-4; 400 V	90 kW
Rated operation power NEMA	110.3248125 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	8.55900 LB
