Documents: 3RT10566AP380PA5

Datasheet

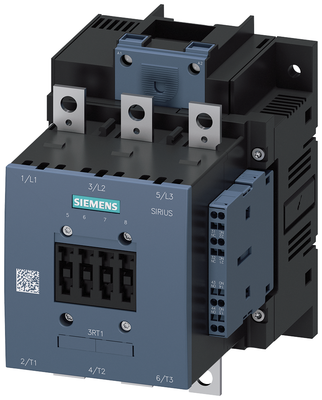

3RT10566AP380PA5 | CONTACTOR. 90KW/400V/AC-3. | Siemens Electrical

Power contactor, AC-3 185 A, 90 kW / 400 V AC (50-60 Hz) / DC operation 220-240 V UC Auxiliary contacts 2 NO + 2 NC solid-state-compatible, 3-pole, Size S6, Busbar connections Drive: conventional

Brand: Siemens ElectricalSKU: 3RT10566AP380PA5

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10566AP380PA5

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10566AP380PA5

Specifications

Item Number	3RT10566AP380PA5
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	220 V
Rated control supply voltage Us at DC	220 V
Rated operation current Ie at AC-1; 400 V	215 A
Rated operation current Ie at AC-3; 400 V	185 A
Rated operation current Ie at AC-4; 400 V	160 A
Rated operation power at AC-3; 400 V	90 kW
Rated operation power at AC-4; 400 V	90 kW
Rated operation power NEMA	110.3248125 kW
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC/DC
Weight	7.38600 LB
