Documents: 3RT10562XJ460LA2

Datasheet

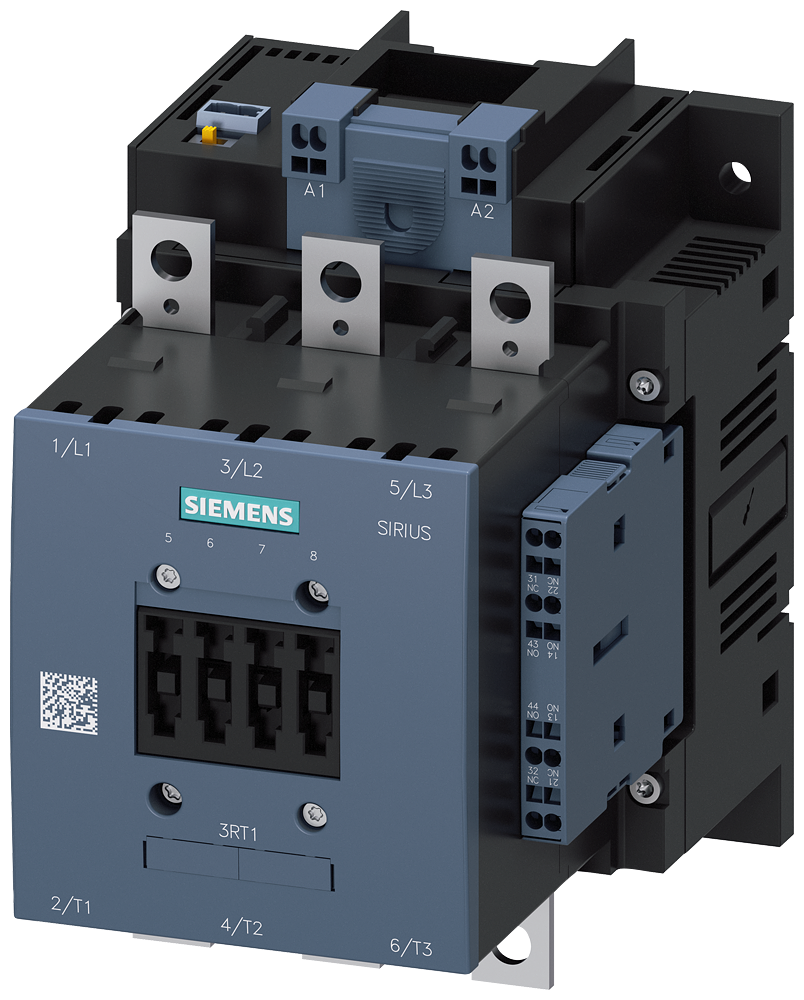

3RT10562XJ460LA2 | Contactor AC3:90 kW/400V 2NO+2NC DC72V | Siemens Electrical

Contactor AC3: 90 kW / 400 V Coil DC 72 V x (0.7...1.25) PLC input DC 24...110 V auxiliary contacts: 2 NO + 2 NC 3-pole Size S6 busbar connections coil terminals: spring loaded

Brand: Siemens ElectricalSKU: 3RT10562XJ460LA2

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT10562XJ460LA2

Jump to: Overview & Specifications Reviews

Overview Details for 3RT10562XJ460LA2

Specifications

Item Number	3RT10562XJ460LA2
Brand	Siemens Electrical
freeship	upsground
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Rated control supply voltage Us at DC	72 V
Rated operation current Ie at AC-1; 400 V	215 A
Rated operation current Ie at AC-3; 400 V	185 A
Rated operation current Ie at AC-4; 400 V	160 A
Rated operation power at AC-3; 400 V	90 kW
Rated operation power at AC-4; 400 V	90 kW
Rated operation power NEMA	110.3248125 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	7.38600 LB
